Komplet narzędzi for BMW 7 Series E65 745i (2003)

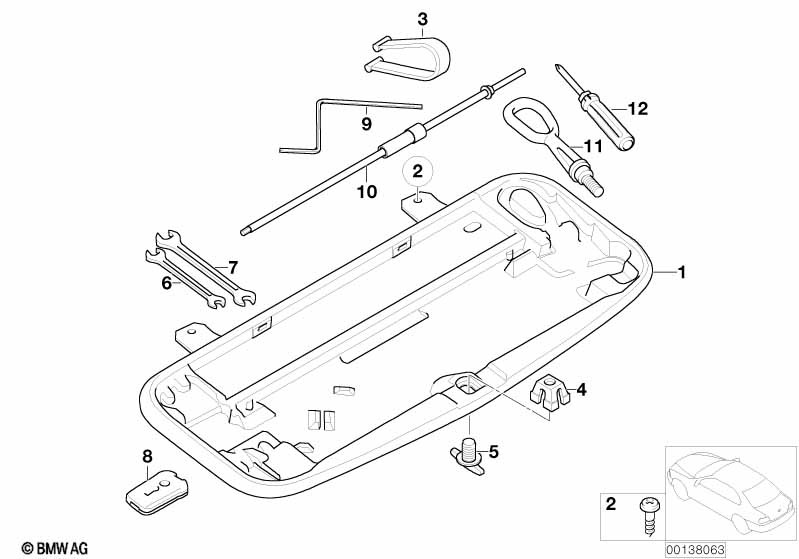

This Komplet narzędzi technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pojemnik na narzędzia | 1 | 71116761420 | $56.56 | Shop at ECS Tuning | |||||
| 02 | Śruba | 4,2X16 | 2 | 71116750167 | $0.50 | Shop at ECS Tuning | ||||
| 03 | Taśma przytrzymująca | 1 | 71111180244 | $2.67 | Shop at ECS Tuning | |||||
| 04 | Wkładka gwintowana | 1 | 71111179445 | $1.82 | Shop at ECS Tuning | |||||
| 05 | Śruba zamykająca | 1 | 71111179444 | $2.17 | Shop at ECS Tuning | |||||
| 06 | Dwustronny klucz płaski | 8X10 | 1 | 71111112893 | $5.40 | Shop at ECS Tuning | ||||
| 07 | Klucz płaski | 12-13 | 1 | 71111126148 | $5.90 | Shop at ECS Tuning | ||||
| 08 | Adapter kluczyka zapasowego | 1 | 61316922666 | $10.37 | Shop at ECS Tuning | |||||
| 09 | Narzędzie awaryjn. otw. el.dachu przes. | 1 | 04/2007 | 54137199324 | $8.97 | Zakończono | Shop at ECS Tuning | |||
| 09 | Narzędzie awaryjnego otw. dachu przes. | 1 | 54127199322 | $9.78 | Shop at ECS Tuning | |||||
| 10 | Sterowanie awaryjne dla siłownika | 1 | 34406750218 | $8.95 | Shop at ECS Tuning | |||||
| 11 | Ucho holownicze | 1 | 03/2002 | 72157070643 | $23.87 | Shop at ECS Tuning | ||||
| 12 | Śrubokręt | 1 | 71111179629 | $4.74 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Komplet narzędzi?
- This technical diagram illustrates the Komplet narzędzi within the Elementy wyprzęgnika group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Pojemnik na narzędzia (Part #71116761420).
- Which models use the hardware listed in this Komplet narzędzi?
- The hardware and components featured in the Komplet narzędzi are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Pojemnik na narzędzia (71116761420) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Komplet narzędzi assembly?
- Each item in the Komplet narzędzi corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Pojemnik na narzędzia by locating its position on the schematic, which then links to the official BMW part number 71116761420 for the Elementy wyprzęgnika section.
