Komplet narzędzi/podnośnik samoch. for BMW 7 Series E65 745i (2003)

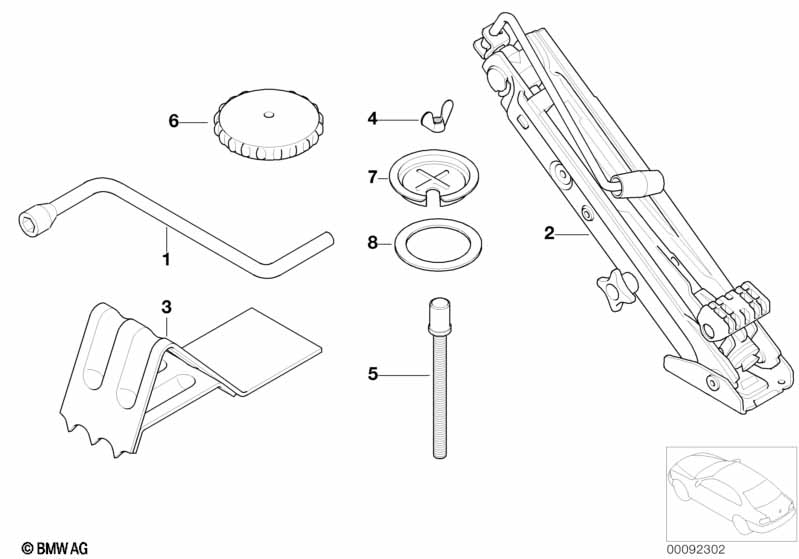

This Komplet narzędzi/podnośnik samoch. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Korba śruby koła | 1 | 71126758731 | $14.56 | Shop at ECS Tuning | |||||
| 02 | Podnośnik samochodowy | 1 | 71126767945 | $83.07 | Shop at ECS Tuning | |||||
| 03 | Klin pod koło alum. | 1 | 71126756392 | $11.50 | Shop at ECS Tuning | |||||
| 04 | Nakrętka motylkowa | M6 | 1 | 07119924038 | $0.34 | Shop at ECS Tuning | ||||
| 04 | Nakrętka motylkowa | M8 | 1 | 71106781144 | $0.58 | Shop at ECS Tuning | ||||
| Dla samochodów z Zawieszenie samopoziomujące |
S220A=Tak |
|||||||||
| 05 | Drążek gwintowany | 1 | 71156756073 | $5.80 | Shop at ECS Tuning | |||||
| Dla samochodów z Zawieszenie samopoziomujące |
S220A=Nie |
|||||||||
| 05 | Drążek gwintowany | 1 | 71156756074 | $7.20 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Pokrętło | 1 | 71156756072 | $4.82 | Shop at ECS Tuning | |||||
| 07 | Podkładka mocująca | 1 | 71156758815 | $5.07 | Shop at ECS Tuning | |||||
| Dla samochodów z Obr. BMW, st. le. spr. gw. 175 lub Obr. BMW, st. le. spr. gw. 175/j.p.u |
S2C1A=Tak S2C2A=Tak |
|||||||||
| 07 | Podkładka mocująca | 1 | 71156750686 | $3.78 | Shop at ECS Tuning | |||||
| 08 | Pierścień | 1 | 71156754340 | $1.50 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
