Poduszka powietrzna for BMW 7 Series E65 745i (2003)

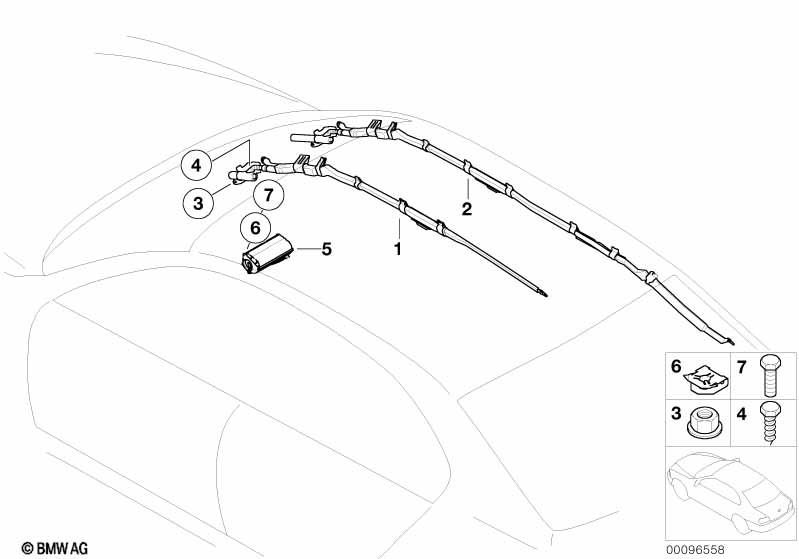

This Poduszka powietrzna technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Poduszka pow. ochr. głowy AHPS2, lew. | 1 | 09/2002 | 72129143351 | $317.88 | Zakończono | Shop at ECS Tuning | |||
| 02 | Poduszka pow. ochr. głowy AHPS2, praw. | 1 | 09/2002 | 72129143352 | $317.88 | Zakończono | Shop at ECS Tuning | |||
| 03 | Nakrętka z podkładką | M6 Z1-ZNNIV SI | 4 | 07146778500 | $0.47 | Shop at ECS Tuning | ||||
| Dla samochodów z Poduszka bocz. pasaż. na tyln. siedz. |
S261A=Tak |
|||||||||
| 04 | Śruba soczewkowa | M5X20 | 26 | 07147075518 | $0.38 | Shop at ECS Tuning | ||||
| Dla samochodów z Poduszka bocz. pasaż. na tyln. siedz. |
S261A=Nie |
|||||||||
| 04 | Śruba soczewkowa | M5X20 | 16 | 07147075518 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Jednostka poduszki pow.,strona pasażera | 1 | 03/2004 | 72127072620 | $618.43 | Zakończono | Shop at ECS Tuning | |||
| 06 | Klamra | 4 | 51457006911 | $0.44 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Śruba z podkładką | M6X18-U2-ZNS3 | 4 | 07119902933 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
