Mocowanie fotelika dla dzieci for BMW 7 Series E65 745i (2003)

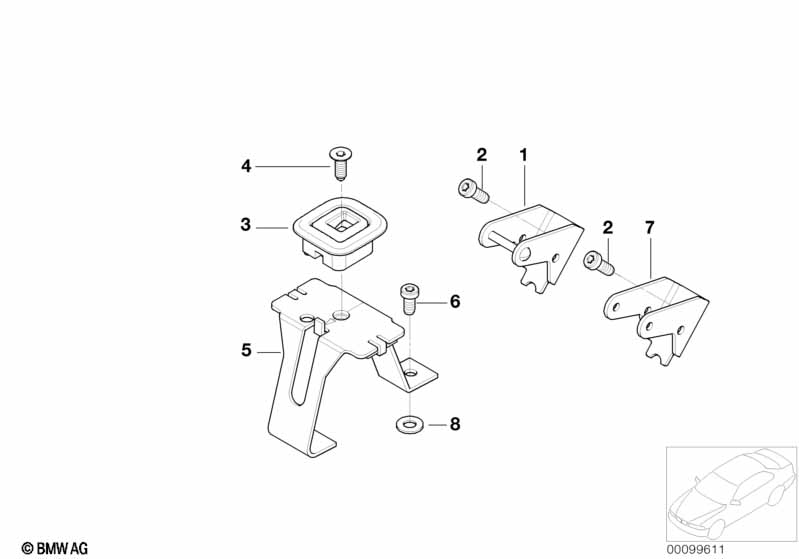

This Mocowanie fotelika dla dzieci technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uchwyt Isofix | 4 | 72147117329 | $6.32 | Shop at ECS Tuning | |||||
| Dla samochodów z System Isofix |
S470A=Tak |
|||||||||
| 01 | Uchwyt Isofix | 4 | 72147005841 | $6.32 | Shop at ECS Tuning | |||||
| 02 | Śruba z łbem walcowym soczewkowym | M10X22 | 4 | 07/2007 | 07149148299 | Shop at ECS Tuning | ||||
| 02 | Śruba z pierścieniem opor. | M10X22 | 4 | 07147163333 | $1.16 | Shop at ECS Tuning | ||||
| 03 | Mocowanie fotelika dla dziecka | SCHWARZ | 3 | 72147040410 | Shop at ECS Tuning | |||||
| 03 | Mocowanie fotelika dla dziecka | FLANELLGRAU | 3 | 72147051788 | $27.78 | Zakończono, +podst | Shop at ECS Tuning | |||
| 03 | Mocowanie fotelika dla dziecka | BEIGE 3 | 3 | 72147255423 | $28.62 | Shop at ECS Tuning | ||||
| 03 | Mocowanie fotelika dla dziecka | BASALTGRAU | 3 | 72147051790 | $27.78 | Zakończono, +podst | Shop at ECS Tuning | |||
| 03 | Mocowanie fotelika dla dziecka | NACHTBLAU | 3 | 72147051791 | $27.78 | Zakończono, +podst | Shop at ECS Tuning | |||
| 05 | Uchwyt mocowania fotelika dla dzieci | 3 | 72148266485 | $17.99 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 06 | Śruba | M8X22 | 6 | 07129903444 | Zakończono | Shop at ECS Tuning | ||||
| Dla samochodów z Fotel komfort siedz. tyln. reg. elektr. |
S460A=Tak |
|||||||||
| 07 | Uchwyt wiązki przew. | 2 | 72147064380 | $4.96 | Zakończono | Shop at ECS Tuning | ||||
| 08 | Podkładka | A8,4X25 | 1 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Podkładka | A8,4X25 | 1 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
