Uchwyt chorągiewki for BMW 7 Series E65 745i (2003)

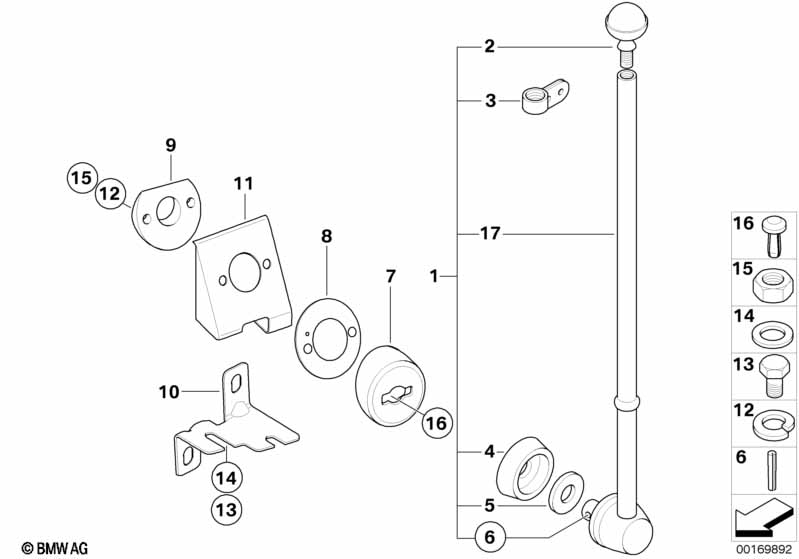

This Uchwyt chorągiewki technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Uwaga! Korzystanie z uchwytu na proporczyk w strefie ruchu publicznego jest dozwolone tylko po indywidualnym dopuszczeniu / dopuszczeniu zamocowania i zatwierdzeniu przez odpowiedni urząd dopuszczający. |
|||||||||
| 01 | Uchwyt chorągiewki | 2 | 72601878398 | $280.78 | Shop at ECS Tuning | |||||
| 02 | Kulka | 2 | 72601827194 | $53.24 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Obejma | 4 | 72601827195 | $66.40 | Shop at ECS Tuning | |||||
| 04 | Osłonka | 2 | 72601827197 | $46.31 | Shop at ECS Tuning | |||||
| 05 | Sprężyna talerzowa | B28 | 2 | 07119936870 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Płyta podstawowa lewa | 1 | 72607076733 | $421.72 | +podst | Shop at ECS Tuning | ||||
| 07 | Płyta podstawowa prawa | 1 | 72607076734 | $434.28 | +podst | Shop at ECS Tuning | ||||
| 08 | Podkładka | 2 | 72607062707 | $2.40 | Zakończono | Shop at ECS Tuning | ||||
| 09 | Podkładka lewa | 1 | 72607062711 | $4.02 | Zakończono | Shop at ECS Tuning | ||||
| 09 | Podkładka prawa | 1 | 72607062712 | $4.02 | Zakończono | Shop at ECS Tuning | ||||
| 10 | Wspornik lewy | 1 | 72607062713 | $47.19 | Zakończono | Shop at ECS Tuning | ||||
| 10 | Wspornik prawy | 1 | 72607062714 | $47.19 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Wspornik lewy | 1 | 72607062709 | $159.07 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Wspornik prawy | 1 | 72607062710 | $159.07 | Zakończono | Shop at ECS Tuning | ||||
| 13 | Śruba sześciokątna | M6X14-ZNNIV SI | 4 | 07119905964 | Shop at ECS Tuning | |||||
| 14 | Podkładka | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 15 | Nakrętka sześciokątna | BM6-8-ZNS3 | 4 | 07129904870 | $0.36 | Shop at ECS Tuning | ||||
| 16 | Zaślepka | 2 | 72601860157 | $6.60 | Shop at ECS Tuning | |||||
| 17 | Drążek | 2 | 72602139202 | Zakończono, +podst | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
