Elem. poj. tel. samoch. bagażnika for BMW 7 Series E65 745i (2003)

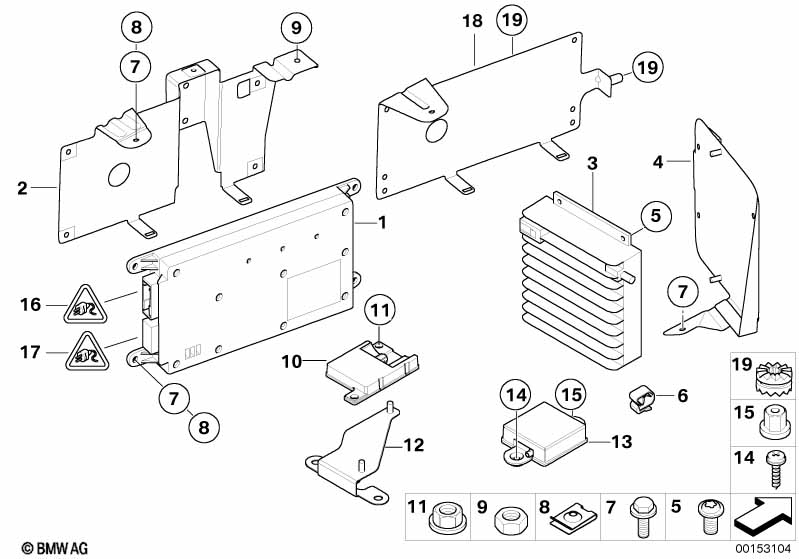

This Elem. poj. tel. samoch. bagażnika technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Przestrzegać czynności PuMA 53476121 | ||||||||||
| 01 | RP REMAN Telematic Control Unit | TCU CDMA | 1 | 01/2003 | 03/2005 | 84109133842 | $403.59 | Zakończono | Shop at ECS Tuning | |
| 02 | Wspornik uzrądzenia nadwczo-odbiorczego | 1 | 84136910137 | $8.30 | Shop at ECS Tuning | |||||
| zamontować opcjonalnie | ||||||||||
| 03 | Kompensator | AMPS TDMA CDMA | 1 | 84216918520 | $551.21 | Shop at ECS Tuning | ||||
| 04 | Uchwyt kompensatora | 1 | 84136911875 | $7.47 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Śruba z łbem wpuszczanym | M4X10-4.8-H-ZNF | 4 | 01/2007 | 07119906863 | Shop at ECS Tuning | ||||
| 05 | Śruba | M4X10 | 4 | 07119905711 | Shop at ECS Tuning | |||||
| 06 | Uchwyt przewodu | D=5MM | 1 | 61131379079 | $0.48 | Shop at ECS Tuning | ||||
| 07 | Śruba sześciokątna | M5X14 | 7 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 08 | Nakrętka | M5 | 6 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 09 | Nakrętka z podkładką | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 10 | Antena | BLUETOOTH | 1 | 01/2003 | 84506928461 | $24.30 | +podst | Shop at ECS Tuning | ||
| 11 | Nakrętka sześciokątna | 2 | 01/2003 | 61131372722 | $0.28 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
