Elem. poj. dachowej anteny telefon. for BMW 7 Series E65 745i (2003)

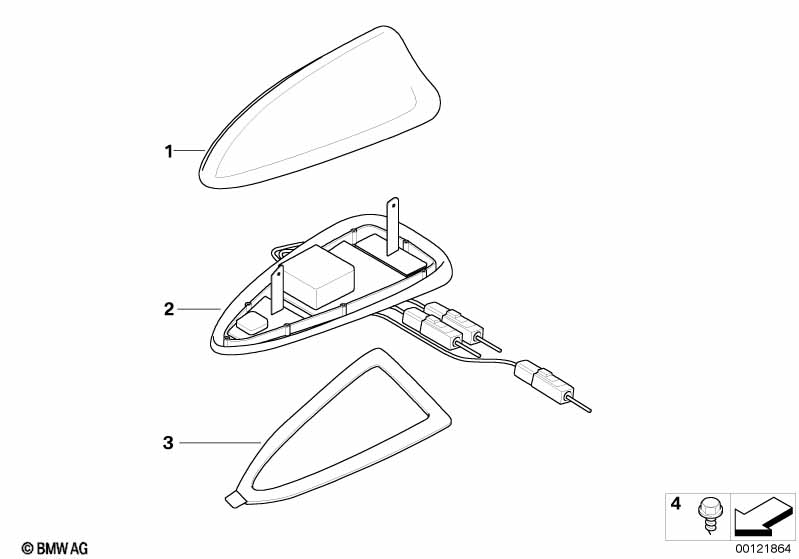

This Elem. poj. dachowej anteny telefon. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Obudowa pusta anteny dachowej lakierow. | 1 | 03/2003 | 84500153131 | $142.35 | Zakończono | Shop at ECS Tuning | |||
| 01 | Obudowa pusta anteny dachowej gruntow. | 1 | 03/2003 | 84506927820 | $29.26 | Shop at ECS Tuning | ||||
| Dla samochodów z Radio satelitarne BMW lub Instalacja radia satelitarnego BMW |
S655A=Tak S693A=Tak |
|||||||||
| 02 | Antena dachowa | 1 | 09/2003 | 09/2006 | 65206949374 | $278.36 | Shop at ECS Tuning | |||
| Dla samochodów z Radio satelitarne BMW i Instalacja radia satelitarnego BMW |
S655A=Nie S693A=Nie |
|||||||||
| 02 | Antena dachowa | 1 | 03/2003 | 65206957345 | $79.16 | Shop at ECS Tuning | ||||
| 03 | Taśma klejąca dwustronna | 1 | 03/2003 | 65206933750 | $15.51 | Zakończono | Shop at ECS Tuning | |||
| Oklejenie odbywa się od 03/2003 za pomocą kleju do szyb |
||||||||||
| 04 | Blachowkręt | ISA M5X12 | 1 | 03/2003 | 07149158177 | $0.25 | Shop at ECS Tuning | |||
Uwagi
- Zakończono = część wycofana z produkcji.
