Elem. poj. OW 644 konsoli środk. for BMW MINI R56 One (2008)

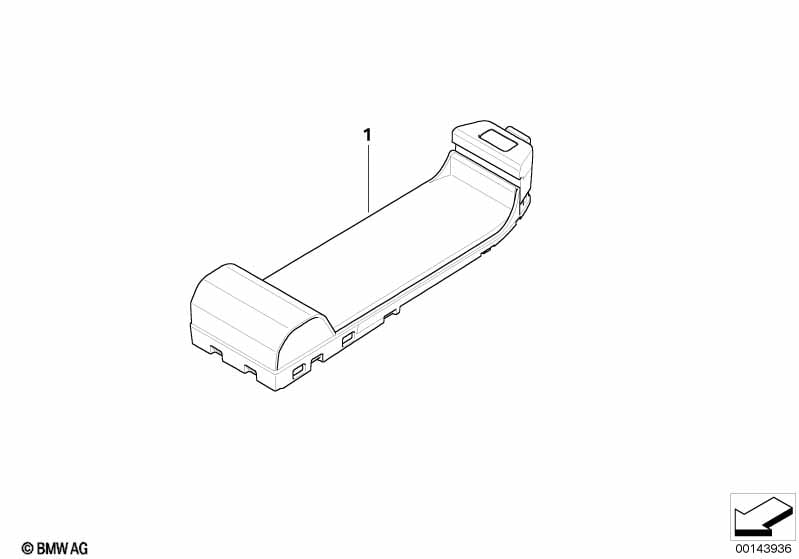

This Elem. poj. OW 644 konsoli środk. technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dla samochodów z Inst. głośnomówiąca Bluetooth lub Inst. tel. kom. Bluetooth + USB/Audio lub Instalacja tel. kom. z Bluetooth |
S6NDA=Tak S6NEA=Tak S644A=Tak |
||||||||
| 01 | Płyta podstawowa | 1 | 84109201946 | $96.98 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 One Elem. poj. OW 644 konsoli środk.?
- This technical diagram illustrates the Elem. poj. OW 644 konsoli środk. within the Systemy komunikacji group for the MINI R56 One produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Płyta podstawowa (Part #84109201946).
- Which models use the hardware listed in this Elem. poj. OW 644 konsoli środk.?
- The hardware and components featured in the Elem. poj. OW 644 konsoli środk. are specific to the MINI R56 One produced during 2008. These technical specifications ensure that parts like the Płyta podstawowa (84109201946) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Elem. poj. OW 644 konsoli środk. assembly?
- Each item in the Elem. poj. OW 644 konsoli środk. corresponds to the numbered list below the illustration. For the MINI R56 One, you can identify the Płyta podstawowa by locating its position on the schematic, which then links to the official BMW part number 84109201946 for the Systemy komunikacji section.
