Zestaw napr. tulei do wsp. czuj. spalin for BMW 7 Series E65 745i (2003)

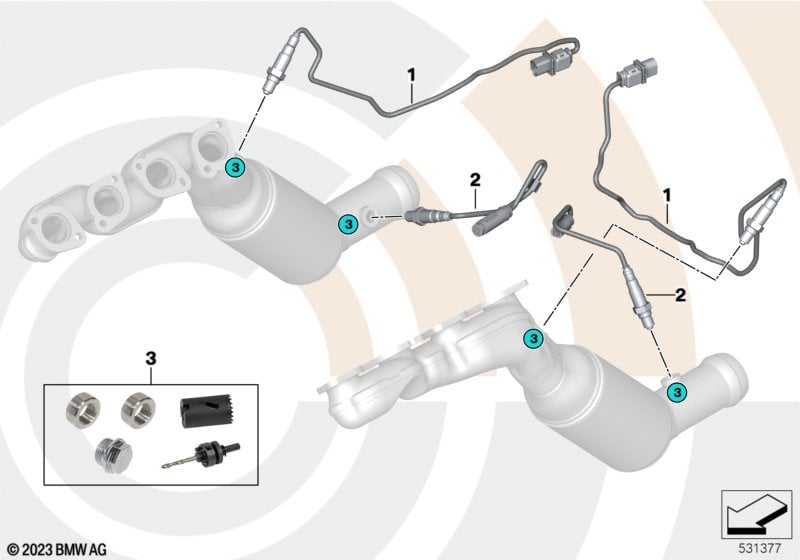

This Zestaw napr. tulei do wsp. czuj. spalin technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| pasuje tylko do cylindra 1-4 | ||||||||||
| 01 | Sonda lambda, czarna | L= 650MM | 1 | 11787516150 | $215.65 | Shop at ECS Tuning | ||||
| pasuje tylko do cylindra 5-8 | ||||||||||
| 01 | Sonda lambda, szara | L= 620MM | 1 | 05/2002 | 11787521705 | $215.65 | Shop at ECS Tuning | |||
| pasuje tylko do cylindra 1-4 | ||||||||||
| 02 | Sonda lambda, czarna | L= 325MM | 1 | 11787512567 | $215.65 | Shop at ECS Tuning | ||||
| pasuje tylko do cylindra 5-8 | ||||||||||
| 02 | Sonda lambda, szara | L= 450MM | 1 | 10/2003 | 11787512002 | $215.65 | Shop at ECS Tuning | |||
| VALUE REPAIR PARTS! Produkt znacznie obniża koszty naprawy. Pierwotna część nie musi być wymieniana. |
||||||||||
| 03 | Tuleja do wspawania sondy lambda | VALUE PARTS | 1 | 18305A93365 | Shop at ECS Tuning | |||||
| Przestrzegaj instrukcji naprawy. Nie stosować w odlewie metalowym! Stosować tylko w przypadku pozycji montażu 90°! Precyzyjnie przywrócić pozycjonowanie! |
||||||||||
