Ind. siedz. komf., tyl., skóra klima, U6 for BMW 7 Series E65 745i (2003)

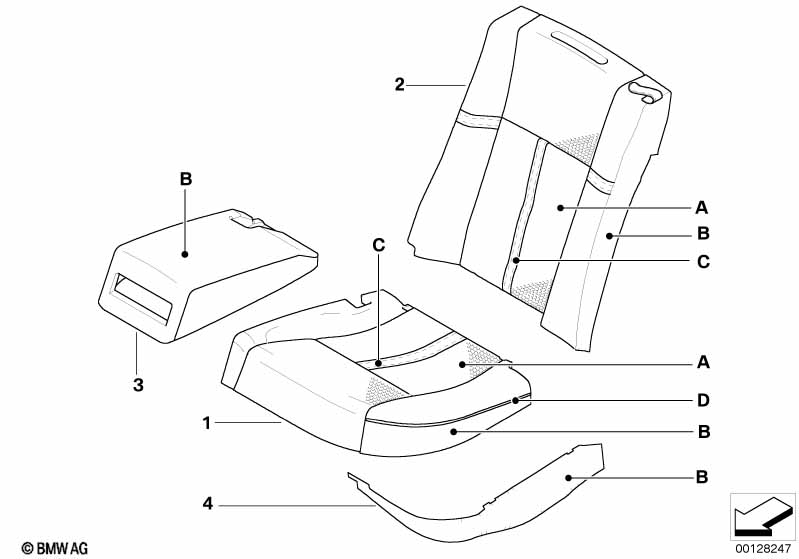

This Ind. siedz. komf., tyl., skóra klima, U6 technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Ind. siedz. komf., tyl., skóra klima, U6
Nr. Opis Uzupełnienie Ilość  Od   Do  Numer części Cena Uwagi
  i pasuje tylko do pojazdów indywid. z
kodem tapicerki Z1XX
---------------------------------------
Uwaga!
Części seryjnych nie można uzyskać
za pomocą tych numerów zamówieniowych
.
W przypadku pojazdów indywidualnych
montowane są również części seryjne.
Należy się uprzednio upewnić, że
zamawiana część zamienna nie jest
częścią seryjną.
---------------------------------------
Przy zamawianiu w zależności od
wymogów
niezbędne będą różne dane
.
Część zamienna do pojazdów
indywidualnych:
- numer katalogowy
- numer sprzedawcy
- numer podwozia
Doposażenie w indywidualną część:
- numer katalogowy
- numer sprzedawcy
- numer podwozia
- (A) Nr kat. skóry (perforowana)
- (B) Nr kat. skóry (gładka)
- (C) Kolor nici
- (D) Nr kat. skóry (kedra)
---------------------------
Ścieg = U6 / fotel. klimatyz.
---------------------------
Dla samochodów z
Fotel komfort siedz. tyln. reg. elektr.


































S460A=Tak
Dla samochodów z
Klimatyzowane fotele przednie
lub
Klimatyzowane fotele tylne
Wersja z podgrzewaniem foteli

S453A=Tak

S454A=Tak
01 Poszycie siedz. komfort, skóra, lewe U6 KLIMALEDER 1 09/2002 03/2004 52208024743 $965.34 Zakończono, NoS Shop at ECS Tuning
01 Poszycie siedz. komfort, skóra, prawe U6 KLIMALEDER 1 09/2002 03/2004 52208024744 $965.34 Zakończono, NoS Shop at ECS Tuning
02 Poszycie oparcia komfort, skóra, lewe U6 KLIMALEDER 1 09/2002 03/2004 52208024747 $965.34 Zakończono, NoS Shop at ECS Tuning
02 Poszycie oparcia komfort, skóra, prawe U6 KLIMALEDER 1 09/2002 03/2004 52208024748 $965.34 Zakończono, NoS Shop at ECS Tuning
Dla samochodów z
Fotel komfort siedz. tyln. reg. elektr.

S460A=Tak
03 Element tapicer. środkowy, skóra INDIVIDUAL 1 09/2002 52207970715 Zakończono, NoS Shop at ECS Tuning
04 Poszycie, lewe INDIVIDUAL 1 09/2002 52208023025 Zakończono, +podst, NoS Shop at ECS Tuning
04 Poszycie, prawe INDIVIDUAL 1 09/2002 52208023026 Zakończono, +podst, NoS Shop at ECS Tuning
Uwagi
  • Zakończono = część wycofana z produkcji.
  • NoS = No Stock (Część niemagazynowana centralnie.)
  • +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
