Travão desportivo "John Cooper Works" for BMW MINI R56 One (2008)

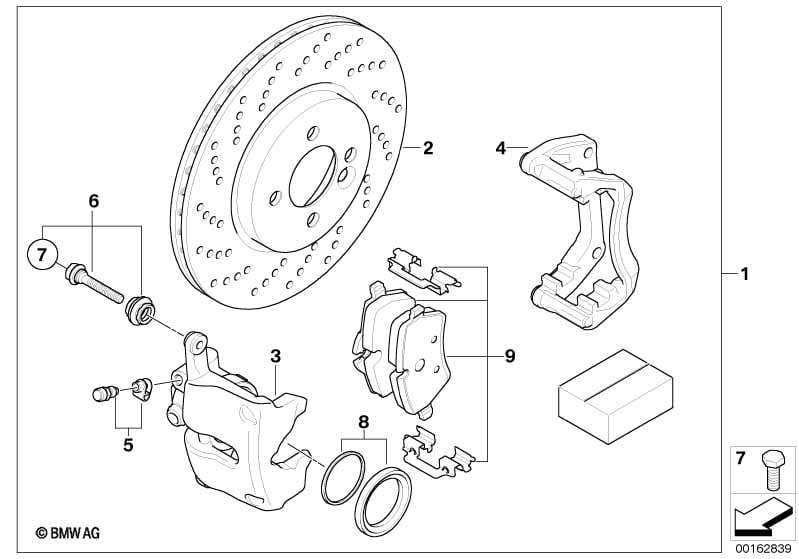

This Travão desportivo "John Cooper Works" technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para viaturas com Jante liga leve MINI 5 Star Rocket 93 e Jante liga leve MINI 5 Star Rocket 93 e Jante de liga leve MINI 7 orifícios 81 e Jante de liga leve MINI 8 raios 82 e Jante de liga leve MINI 5 estrelas 16" e Jante de liga leve MINI X-Lite 84 e Roda comp. Inv. 15" 7 Hole Spoke R81 e Jante LL 15" Star Spoke R86 e 15" WKR Star Spoke R86 e 16" WKR Double Spoke R88 e 16" WKR X-Lite Styling R84 e Roda compl. Inverno 16" de 7 raios R92 e Roda compl. Inverno 15" de 8 raios R82 e 16" LMR Cross Spoke R90 inteiriça e Jante de aço 12 WKR 15" e Jante LL 16" Double Spoke R88 |
S2CLA=Não S2C3A=Não S306A=Não S367A=Não S368A=Não S385A=Não SZD2A=Não SZPSA=Não SZQSA=Não SZQTA=Não SZQUA=Não SZQWA=Não SZQXA=Não SZV1A=Não SZW0A=Não SZXMA=Não |
|||||||||
| 01 | Kit de reequipamento travão desportivo | J. COOPER WORKS | 1 | 34110428914 | $1360.00 | ENDED, +core | Shop at ECS Tuning | |||
| não indicado para | ||||||||||
| -- | Roda de emergência Aço preto | 31/2JX15 ET:35 | X | 36111509164 | $120.00 | +core | Shop at ECS Tuning | |||
| -- | Jante em ferro em preto | 51/2JX15 ET:45 | X | 36111511414 | $57.44 | +core | Shop at ECS Tuning | |||
| -- | Jante em aço Silber | 51/2JX16 ET:45 | X | 36116764346 | $69.93 | ENDED, +core | Shop at ECS Tuning | |||
| -- | Jante de liga leve lustrada | 7JX18 ET:52 | X | 36116774581 | $387.95 | Shop at ECS Tuning | ||||
| 02 | Disco de travão ventilado com orifícios | 294X22 | 2 | 34116777826 | $109.00 | ENDED | Shop at ECS Tuning | |||
| 03 | Corpo da pinça do travão esquerda | 1 | 34116778335 | $254.71 | Shop at ECS Tuning | |||||
| 03 | Corpo da pinça do travão direita | 1 | 34116778336 | $254.71 | Shop at ECS Tuning | |||||
| 04 | Suporte do travão esquerdo | 1 | 34206779729 | $121.04 | Shop at ECS Tuning | |||||
| 04 | Suporte do travão direito | 1 | 34206779730 | $121.04 | Shop at ECS Tuning | |||||
| 05 | Kit de reparação válvula de ventilação | 2 | 34116768188 | $6.52 | Shop at ECS Tuning | |||||
| 06 | Kit de reparação de foles | 4 | 34116768189 | $19.48 | Shop at ECS Tuning | |||||
| 07 | Parafuso sextavado | M8 | 4 | 34116768190 | $3.12 | Shop at ECS Tuning | ||||
| 08 | Kit de vedantes das pinças do travão | 2 | 34116769277 | $25.42 | Shop at ECS Tuning | |||||
| 09 | Kit repar. Pastilhas travão s/ amianto | 1 | 34116778320 | $122.65 | Shop at ECS Tuning | |||||
| Adicionalmente, as seguintes peças são absolutamente necessárias: - Sensor das pastilhas do travão - Pasta para pastilhas de travão - Em caso de viaturas com mais de 48 - meses, recomenda-se adicionalmente: - Substituir mola de segurança, consultar Manual de reparação! |
||||||||||
Notas
- ENDED = a peça foi descontinuada
- +core = plus core charge (possibilidade de devolver a peça antiga)
