Mont. post. apoio braços diant. for BMW MINI R56 One (2008)

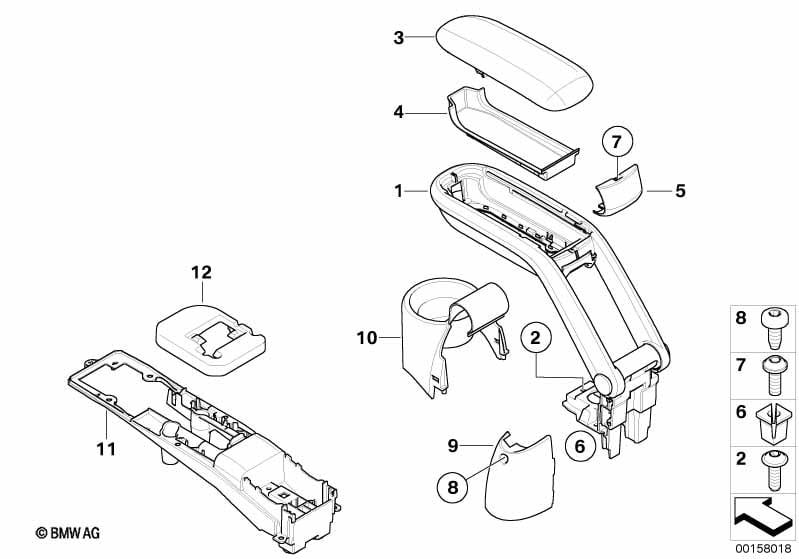

This Mont. post. apoio braços diant. technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Apoio central braços decor.prateado fr. | CARBON BLACK | 1 | 08/2010 | 51169185114 | $126.89 | Shop at ECS Tuning | |||
| Para viaturas com Âmbitos decorativos alargados e Sistema de navegação Professional |
S4AUA=Não S609A=Não |
|||||||||
| 01 | Apoio central braços decor.prateado fr. | CARBON BLACK | 1 | 08/2010 | 51169185114 | $126.89 | Shop at ECS Tuning | |||
| apenas em combinação com | ||||||||||
| -- | Consola do travão de mão | 1 | 08/2010 | 51162756156 | $62.14 | Shop at ECS Tuning | ||||
| 02 | Parafuso de cabeça oval | PT6X18 | 5 | 07146959826 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Apoio braço consola central imit.pele | SCHWARZ | 1 | 51162753341 | $58.66 | Shop at ECS Tuning | ||||
| 04 | Porta-objectos apoio braços central | 1 | 51166954280 | $5.40 | Shop at ECS Tuning | |||||
| 05 | Cobertura do apoio de braços central | CARBON BLACK | 1 | 51162756045 | $5.59 | Shop at ECS Tuning | ||||
| 06 | Porca de expansão | 3 | 07130657024 | $0.25 | Shop at ECS Tuning | |||||
| 07 | Parafuso de cabeça oval | PT2,1X9 | 1 | 07140393431 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Parafuso de cabeça oval | DG5X12 ZNFE SW | 2 | 07146959889 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Cobertura apoio central dos braços esq. | CARBON BLACK | 1 | 51169185111 | Shop at ECS Tuning | |||||
| 09 | Cobertura apoio central dos braços drt. | CARBON BLACK | 1 | 51169185112 | Shop at ECS Tuning | |||||
| 10 | Suporte bebidas cons. travão mão tras. | CARBON BLACK | 1 | 51169194039 | $16.13 | Shop at ECS Tuning | ||||
| 11 | Suporte traseiro consola travão de mão | 1 | 51169185223 | $19.14 | Shop at ECS Tuning | |||||
| 12 | Elemento de enchimento | MRSZ4 | 1 | 51472754964 | $8.30 | Shop at ECS Tuning | ||||
