Conjunto aerodinâmico for BMW 3 Series E30 320i (1988)

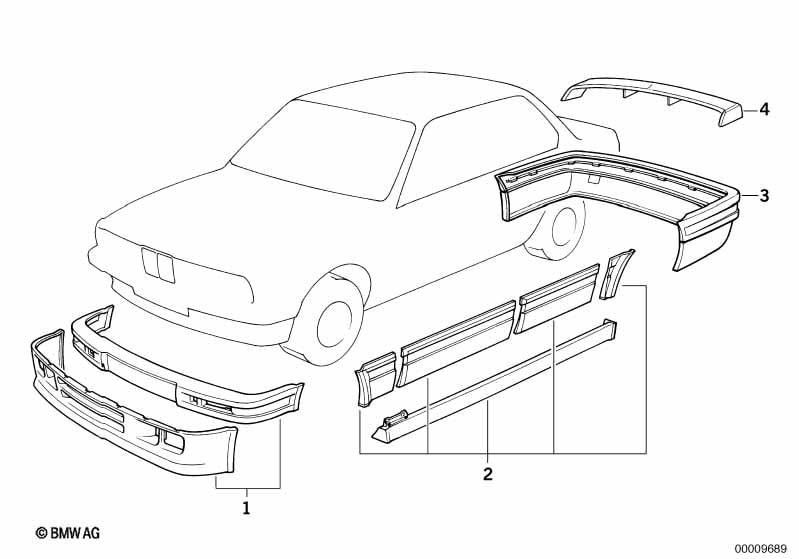

This Conjunto aerodinâmico technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spoiler dianteiro parte superior | 1 | 82119401462 | ENDED | Shop at ECS Tuning | |||||
| 01 | Spoiler dianteiro parte inferior | 1 | 82119401463 | ENDED | Shop at ECS Tuning | |||||
| 01 | Tampa da argola de reboque | 1 | 82119401464 | ENDED | Shop at ECS Tuning | |||||
| 01 | Kit montagem spoiler diant. superior | 1 | 82119401475 | ENDED | Shop at ECS Tuning | |||||
| 01 | Kit montagem spoiler diant. inf. | 1 | 82119401480 | ENDED | Shop at ECS Tuning | |||||
| 01 | Kit mont.post. spoiler diant. | 1 | 09/1987 | 82119401458 | $810.75 | ENDED, ABE 9786216 | Shop at ECS Tuning | |||
| 02 | Lancil direito | 1 | 82119401469 | ENDED | Shop at ECS Tuning | |||||
| 02 | Lancil esquerdo | 1 | 82119401470 | ENDED | Shop at ECS Tuning | |||||
| 02 | Lancil direito | 1 | 82119401471 | ENDED | Shop at ECS Tuning | |||||
| 02 | Lancil esquerdo | 1 | 82119401472 | ENDED | Shop at ECS Tuning | |||||
| 02 | Kit de montagem de lancil | 1 | 82119401473 | ENDED | Shop at ECS Tuning | |||||
| 02 | Kit de montagem de lancil | 1 | 82119401481 | ENDED | Shop at ECS Tuning | |||||
| 02 | Lancil | SATZ | 1 | 09/1987 | 82119401459 | $790.88 | ENDED | Shop at ECS Tuning | ||
| 03 | Tampa da argola de reboque | ERSATZTEIL | 1 | 82119401474 | ENDED | Shop at ECS Tuning | ||||
| Para viaturas com Gancho de reboque |
=Não |
|||||||||
| 03 | Kit de montagem do avental traseiro | 1 | 82119401476 | ENDED | Shop at ECS Tuning | |||||
| 03 | Kit mont.post. avental tras. | 1 | 09/1987 | 82119401461 | $585.90 | ENDED | Shop at ECS Tuning | |||
| 04 | Kit mont.post. spoiler tras. | 1 | 82119401427 | $265.34 | Shop at ECS Tuning | |||||
| 04 | Cola | 1 | 82119413868 | ENDED | Shop at ECS Tuning | |||||
Notas
- ENDED = a peça foi descontinuada
- ABE = Allgemeine Betriebserlaubnis (Licença de funcionamento geral)
