Pala pára-lamas for BMW 5 Series E60 525i (2005)

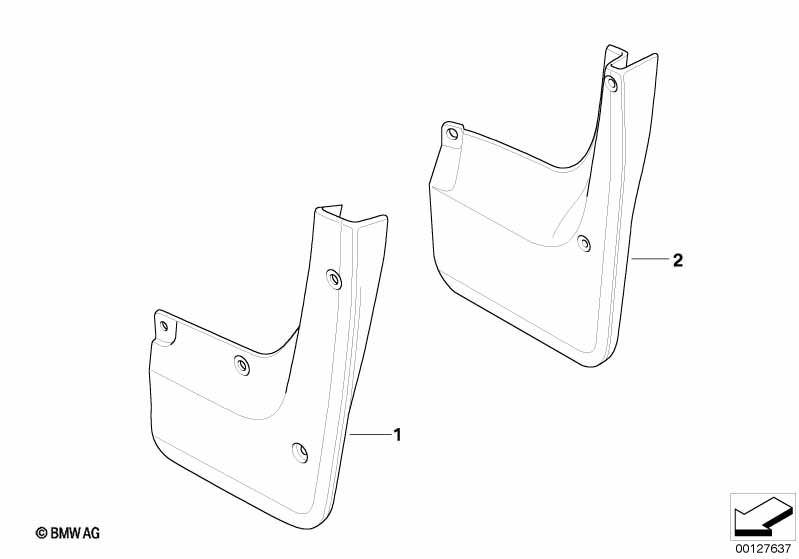

This Pala pára-lamas technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Atenção: A instrução de montagem (EBA) não está incluída no kit de reequipamento. Imprimir a instrução de montagem atual do catálogo eletrónico de peças (ETK) e entregar ao cliente. Para viaturas com Versão para a China |
L8AAA=Não |
||||||||
| Para viaturas com Conjunto aerodinâmico M Technic e Kit desportivo M |
S715A=Não P337A=Não |
|||||||||
| 01 | Jogo de palas pára-lamas dianteiro | 1 | 82160148711 | $59.00 | ENDED | Shop at ECS Tuning | ||||
| Para viaturas com Conjunto aerodinâmico M Technic ou Kit desportivo M |
S715A=Sim P337A=Sim |
|||||||||
| 01 | Jogo de palas pára-lamas dianteiro | 1 | 82160404696 | $59.00 | ENDED | Shop at ECS Tuning | ||||
| Para viaturas com Conjunto aerodinâmico M Technic e Kit desportivo M |
S715A=Não P337A=Não |
|||||||||
| 02 | Jogo de palas pára-lamas traseiro | 1 | 03/2007 | 82160148712 | $59.00 | ENDED | Shop at ECS Tuning | |||
| Para viaturas com Conjunto aerodinâmico M Technic ou Kit desportivo M |
S715A=Sim P337A=Sim |
|||||||||
| 02 | Jogo de palas pára-lamas traseiro | 1 | 82160404699 | $59.00 | ENDED | Shop at ECS Tuning | ||||
Notas
- ENDED = a peça foi descontinuada
