Culassa for BMW 7 Series E38 750i (1998)

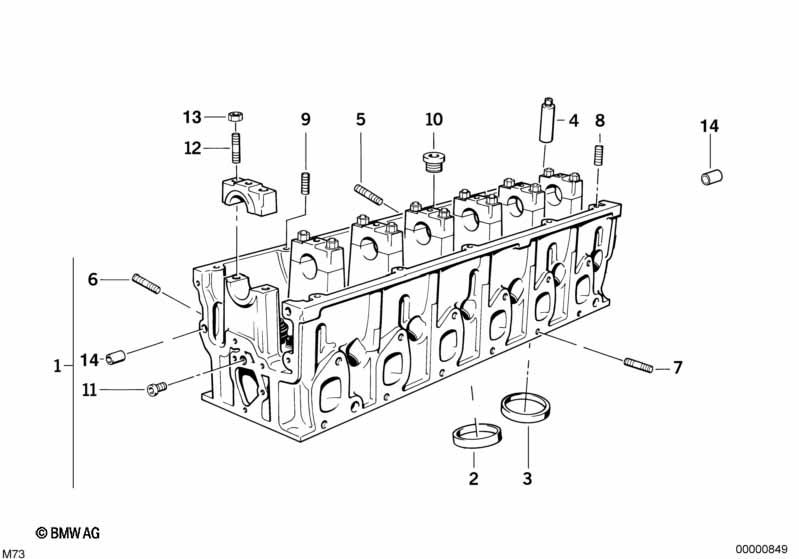

This Culassa technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Culassa | 2 | 11121702733 | $3936.32 | Shop at ECS Tuning | |||||
| 02 | Anel da sede da válvula de admissão | 43,55MM(+0,4) | 12 | 11121719784 | $13.16 | ENDED | Shop at ECS Tuning | |||
| 03 | Anel da sede da válvula de escape | 38,05MM(+0,4) | 12 | 11121715253 | $16.40 | Shop at ECS Tuning | ||||
| Consultar Informação de Serviço SIT 843 11 02 88 (sobremedida da haste da válvula) |
||||||||||
| 04 | Guia da válvula | 12,7MM(+0,2) | 24 | 11121709860 | ENDED, SI 110288843 | Shop at ECS Tuning | ||||
| 05 | Perno de rosca | M8X28 | 10 | 07129908147 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Perno de rosca | M8X40 | 4 | 07129903964 | Shop at ECS Tuning | |||||
| 07 | Perno de rosca | M8X45 | 24 | 07129908136 | $0.29 | Shop at ECS Tuning | ||||
| 08 | Perno de rosca | M6X28-ZN | 16 | 07129908111 | $0.63 | Shop at ECS Tuning | ||||
| 09 | Perno de rosca | M6X35-ZNS3 | 4 | 07129903886 | Shop at ECS Tuning | |||||
| 10 | Bujão roscado | M18X1,5 | 4 | 07119919017 | Shop at ECS Tuning | |||||
| 11 | Bujão roscado | M10X1-8.8-ZNNIV | 4 | 11127539543 | $2.12 | Shop at ECS Tuning | ||||
| 12 | Perno de rosca | M7X45 | 28 | 07129908199 | $0.89 | Shop at ECS Tuning | ||||
| 13 | Porca de flange | M7 | 28 | 11617573839 | $0.33 | Shop at ECS Tuning | ||||
| 14 | Casquilho de adaptação | D=8,5X9MM | 8 | 11121726242 | $1.07 | Shop at ECS Tuning | ||||
Notas
- ENDED = a peça foi descontinuada
- SI = Service-Information (Informação de Serviço)
