Biela/apoio da biela for BMW 1502-2002tii 2002turbo (1973)

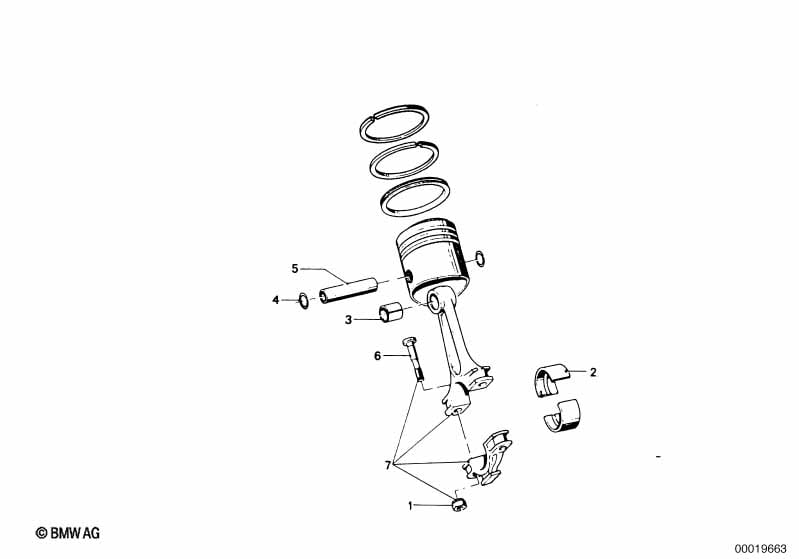

This Biela/apoio da biela technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002turbo. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Porca sextavada | M10X1 | 8 | 11240518321 | $1.52 | Shop at ECS Tuning | ||||
| 02 | Casquilho de chumaceira | 48,00MM | 8 | 11241258428 | $9.43 | ENDED | Shop at ECS Tuning | |||
| 02 | Casquilho de chumaceira | 47,500MM(+0,50) | 8 | 11241258431 | $17.45 | ENDED | Shop at ECS Tuning | |||
| 02 | Casquilho de apoio vermelho | 48,00MM(0) | 8 | 11241284550 | $10.85 | Shop at ECS Tuning | ||||
| 02 | Casquilho de apoio azul | 48,00MM(0) | 8 | 11241284551 | $10.85 | Shop at ECS Tuning | ||||
| 02 | Casquilho de apoio vermelho | 47,75MM(+0,25) | 8 | 11241284552 | $13.27 | Shop at ECS Tuning | ||||
| 02 | Casquilho de apoio azul | 47,75MM(+0,25) | 8 | 11241284553 | $13.27 | Shop at ECS Tuning | ||||
| 02 | Casquilho de apoio vermelho | 47,50MM(+0,50) | 8 | 11241284554 | $13.27 | Shop at ECS Tuning | ||||
| 02 | Casquilho de apoio azul | 47,50MM(+0,50) | 8 | 11241284555 | $13.27 | Shop at ECS Tuning | ||||
| 02 | Casquilho de apoio vermelho | 47,25MM(+0,75) | 8 | 11241284556 | $13.27 | Shop at ECS Tuning | ||||
| 02 | Casquilho de apoio azul | 47,25MM(+0,75) | 8 | 11241284557 | $10.94 | Shop at ECS Tuning | ||||
| 03 | Casquilho da biela | 4 | 11240618100 | $2.47 | Shop at ECS Tuning | |||||
| 04 | Anel de retenção | C22X1.5 | 8 | 07119934460 | $0.35 | Shop at ECS Tuning | ||||
| 05 | cavilha do pistão | 22X13X71 | 4 | 09/1965 | 07/1976 | 11250712199 | $29.28 | ENDED | Shop at ECS Tuning | |
| 06 | Parafuso da biela | 8 | 11241719991 | $6.32 | Shop at ECS Tuning | |||||
| 07 | Haste da biela | L=135MM | 4 | 11240618006 | $209.32 | Shop at ECS Tuning |
Notas
- ENDED = a peça foi descontinuada
