Tubuladura de admissão for BMW 1502-2002tii 2002turbo (1973)

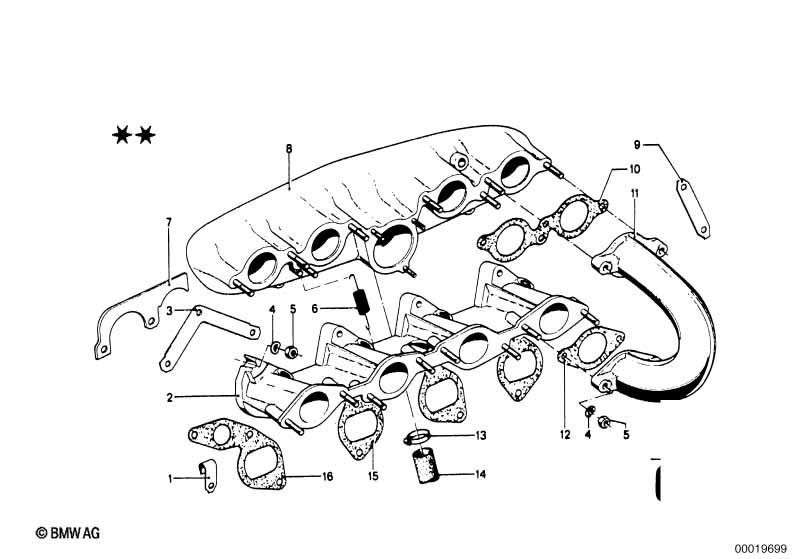

This Tubuladura de admissão technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002turbo. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Fg-> 2710777 / 2002 Tii Fg-> 2750864 / 2002 Tii Rl Fg-> 3423209 / 2000 Tii Touring Fg-> 2761945-2762015 / 2002 Tii Usa Fg-> 2762372 / 2002 Tii Usa |
||||||||||
| 01 | Suporte de cabos | 1 | 13311256511 | ENDED | Shop at ECS Tuning | |||||
| 02 | Tubuladura de admissão | 1 | 11611257022 | ENDED | Shop at ECS Tuning | |||||
| 03 | Suporte | 1 | 11611257025 | $0.98 | ENDED | Shop at ECS Tuning | ||||
| 04 | Disco de mola | 8,4X15-ZNS3 | 24 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Porca sextavada com flange | M8 | 26 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 06 | Mola de tensão | 1 | 13541257052 | $3.58 | Shop at ECS Tuning | |||||
| 08 | Colector | 1 | 11611257266 | ENDED | Shop at ECS Tuning | |||||
| 09 | Suporte | 1 | 11611257026 | $0.62 | Shop at ECS Tuning | |||||
| 10 | Vedante sem amianto | 2 | 11619065677 | $6.07 | Shop at ECS Tuning | |||||
| 11 | Tubo de admissão | 3 | 11611257031 | $93.74 | ENDED | Shop at ECS Tuning | ||||
| 12 | Vedante sem amianto | 4 | 11611730742 | $3.80 | Shop at ECS Tuning | |||||
| 13 | Braçadeira para tubo flexível | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 15 | Vedante sem amianto | 3 | 11611727994 | $3.80 | Shop at ECS Tuning | |||||
| 16 | Vedante sem amianto | 1 | 11611727995 | $3.80 | Shop at ECS Tuning | |||||
Notas
- ENDED = a peça foi descontinuada
