Motor de arranque Peças individuais for BMW 3 Series E21 320i

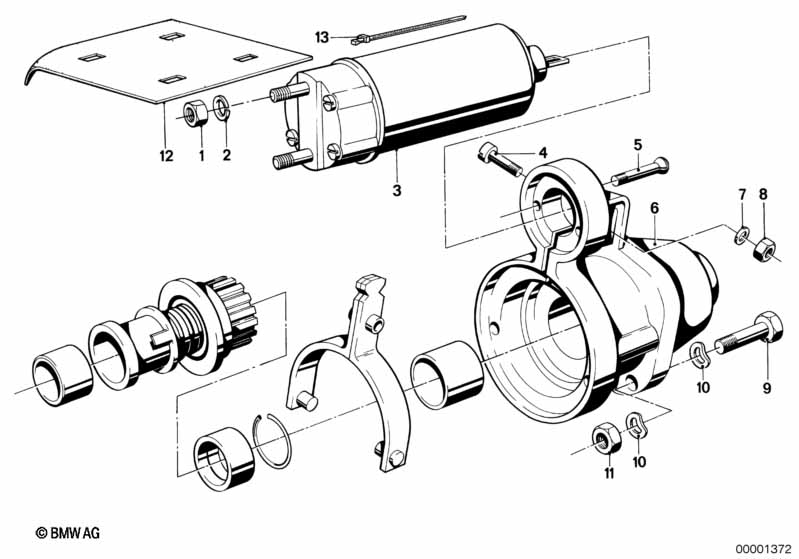

This Motor de arranque Peças individuais technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Porca sextavada | M8-05-ZNNIV SI | 1 | 09/1979 | 07119904948 | $1.00 | Shop at ECS Tuning | |||
| 02 | Anel de mola | B8 | 1 | 09/1979 | 07119933096 | $0.18 | Shop at ECS Tuning | |||
| 03 | Relé de arranque | 1 | 09/1979 | 12411357118 | ENDED | Shop at ECS Tuning | ||||
| 04 | Parafuso de cabeça cilíndrica | 1 | 09/1979 | 12418620114 | $1.21 | ENDED | Shop at ECS Tuning | |||
| 05 | Parafuso de cabeça chata | 2 | 09/1979 | 12418620158 | $0.77 | ENDED | Shop at ECS Tuning | |||
| 06 | Rolamento de accionamento | 1 | 09/1979 | 12418620108 | $99.88 | ENDED | Shop at ECS Tuning | |||
| 07 | Anel de mola | B6 | 1 | 09/1979 | 07119933082 | $0.09 | Shop at ECS Tuning | |||
| 08 | Porca sextavada | M6-04-2-ZN | 1 | 09/1979 | 07119921054 | $0.11 | Shop at ECS Tuning | |||
| 09 | Parafuso sextavado | M10X75 | 1 | 09/1979 | 11111735525 | $0.93 | Shop at ECS Tuning | |||
| 10 | Disco de mola | B10-ZNS3 | 4 | 09/1979 | 07119904463 | Shop at ECS Tuning | ||||
| 11 | Porca sextavada | M10-8-ZNS | 2 | 09/1979 | 07119915558 | $0.88 | Shop at ECS Tuning | |||
| 12 | Cobertura do relé de arranque | 1 | 09/1979 | 61131361340 | $3.02 | Shop at ECS Tuning | ||||
| 13 | Cinta de cabos | L=292MM/B=4,8MM | 2 | 09/1979 | 61131377134 | $0.77 | Shop at ECS Tuning |
Notas
- ENDED = a peça foi descontinuada
