Bomba do combustível / sensor de nível for BMW MINI R56 One (2008)

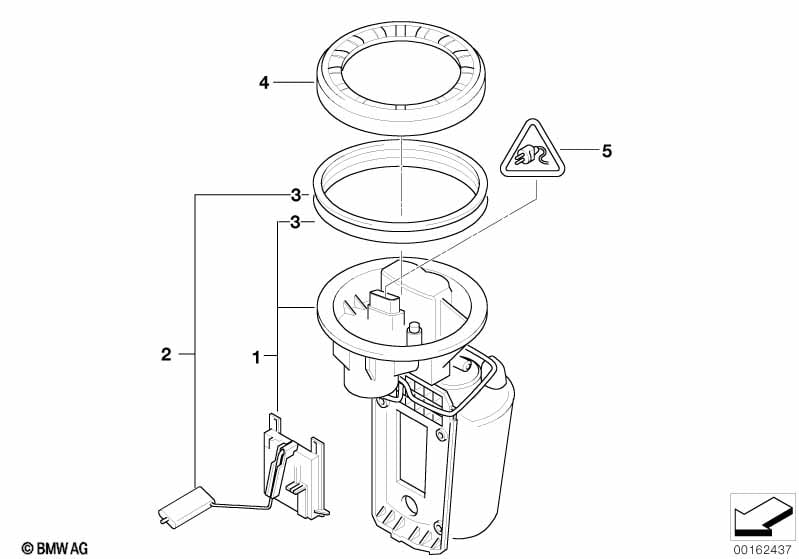

This Bomba do combustível / sensor de nível technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uni.alim. c/pré-bom.no dep.comb.e filtro | 40L | 1 | 16112754806 | Shop at ECS Tuning | |||||
| 03 | Borracha de vedação | 1 | 16142752288 | $10.53 | Shop at ECS Tuning | |||||
| 04 | Capa de rosca | 1 | 16142752289 | Shop at ECS Tuning | ||||||
| 05 | Invólucro fêmea | 6 POL. | 1 | 61131387190 | $6.73 | Shop at ECS Tuning | ||||
| apenas em combinação com | ||||||||||
| -- | Contacto encaixe redondo 2.5 ELA c. cabo | 1,0-2,5 MM² | 6 | 61130007572 | $2.65 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 One Bomba do combustível / sensor de nível?
- This technical diagram illustrates the Bomba do combustível / sensor de nível within the Alimentação de combustível group for the MINI R56 One produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Uni.alim. c/pré-bom.no dep.comb.e filtro (Part #16112754806).
- Which models use the hardware listed in this Bomba do combustível / sensor de nível?
- The hardware and components featured in the Bomba do combustível / sensor de nível are specific to the MINI R56 One produced during 2008. These technical specifications ensure that parts like the Uni.alim. c/pré-bom.no dep.comb.e filtro (16112754806) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bomba do combustível / sensor de nível assembly?
- Each item in the Bomba do combustível / sensor de nível corresponds to the numbered list below the illustration. For the MINI R56 One, you can identify the Uni.alim. c/pré-bom.no dep.comb.e filtro by locating its position on the schematic, which then links to the official BMW part number 16112754806 for the Alimentação de combustível section.
