Radiador deslocado for BMW 2 Series U06 Active Tourer 223i (2020)

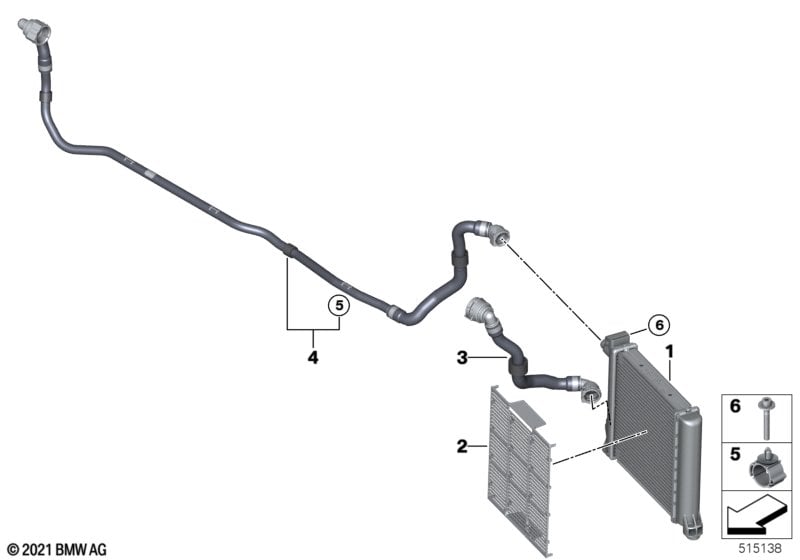

This Radiador deslocado technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 223i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para viaturas com Gancho de reboque e Pré-instalação para gancho de reboque |
S3ACA=Sim S8SLA=Sim |
|||||||||
| 01 | Radiador deslocado | 1 | 17119847023 | Shop at ECS Tuning | ||||||
| 02 | Grelha proteção contra projeção pedras | 1 | 17115A1E2B0 | Shop at ECS Tuning | ||||||
| 03 | Tubo flexível radiador | 1 | 17125A0C5A0 | Shop at ECS Tuning | ||||||
| 04 | Linha radiador deslocado | 1 | 17125A0C599 | Shop at ECS Tuning | ||||||
| 05 | Fixador de tubos | 3 | 13311714453 | $0.28 | Shop at ECS Tuning | |||||
| 06 | Parafuso ISA | M6X45 ZNS3 | 1 | 07129906470 | Shop at ECS Tuning | |||||
