Suspensão da caixa de velocidades for BMW MINI R56 One (2008)

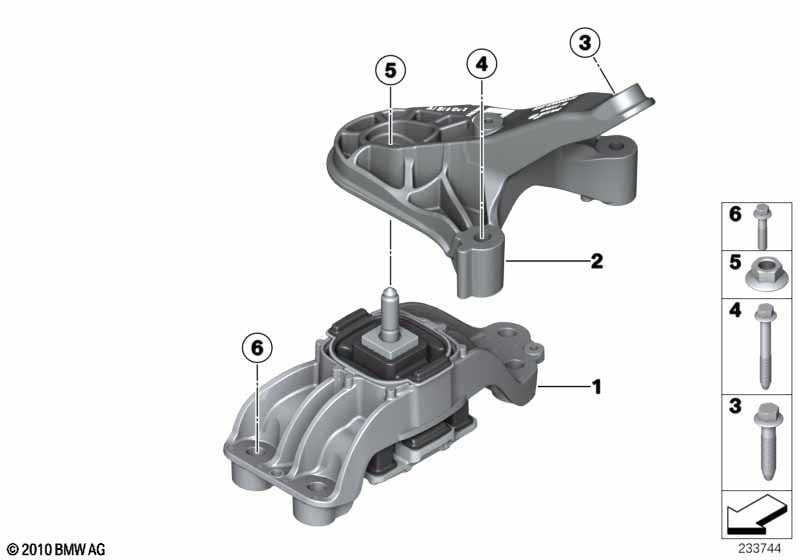

This Suspensão da caixa de velocidades technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para viaturas com Caixa de velocidades automática |
S205A=Não |
|||||||||
| 01 | Apoio da caixa | 1 | 22316779806 | $77.08 | Shop at ECS Tuning | |||||
| Para viaturas com Caixa de velocidades automática |
S205A=Sim |
|||||||||
| 01 | Apoio da caixa | 1 | 22316784357 | $204.22 | +core | Shop at ECS Tuning | ||||
| 02 | Suporte da caixa de velocidades | 1 | 22316872019 | $66.06 | Shop at ECS Tuning | |||||
| apenas em combinação com | ||||||||||
| -- | Parafuso auto-atarraxador | M6X16MM | 2 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
| 03 | Parafuso hexagonal com flange | M10X45 8.8 | 1 | 09/2009 | 07119904575 | $1.25 | Shop at ECS Tuning | |||
| 03 | Parafuso hexagonal com flange | M10X50 10.9 | 1 | 22116793735 | Shop at ECS Tuning | |||||
| 04 | Parafuso sextavado | M10X80 10.9 | 2 | 22116793713 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Porca sextavada | M12X1,5-10 ZNS3 | 1 | 07119906050 | $1.09 | Shop at ECS Tuning | ||||
| 06 | Parafuso hexagonal com flange | M10X45 8.8 | 4 | 07119904575 | $1.25 | Shop at ECS Tuning | ||||
Notas
- +core = plus core charge (possibilidade de devolver a peça antiga)
