Travão tambor/maxila trav. suporte trav. for BMW 3 Series E30 318i (1991)

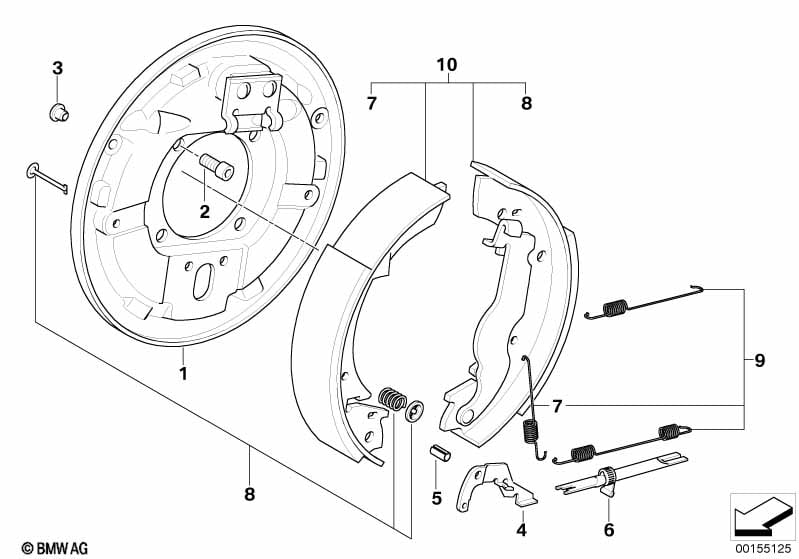

This Travão tambor/maxila trav. suporte trav. technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Suporte do travão esquerdo | 1 | 09/1985 | 34211156267 | $49.38 | Shop at ECS Tuning | ||||
| 01 | Suporte do travão direito | 1 | 09/1985 | 34211156268 | $49.38 | Shop at ECS Tuning | ||||
| 02 | Parafuso de cabeça cilíndrica | M10X16-10.9 PHR | 8 | 07119919660 | $0.43 | Shop at ECS Tuning | ||||
| 03 | Bujão | 4 | 34211153890 | $3.00 | Shop at ECS Tuning | |||||
| Apenas indicado para travão direito | ||||||||||
| 04 | Alavanca | 1 | 34211159811 | $8.40 | Shop at ECS Tuning | |||||
| Apenas indicado para travão esquerdo | ||||||||||
| 04 | Alavanca | 1 | 34211159812 | $8.40 | Shop at ECS Tuning | |||||
| 05 | Pino | 5X14 | 2 | 07119941342 | $0.21 | ENDED | Shop at ECS Tuning | |||
| 06 | Tirante esquerdo | 1 | 34211154381 | $19.29 | Shop at ECS Tuning | |||||
| 06 | Tirante direito | 1 | 34211154382 | $19.29 | Shop at ECS Tuning | |||||
| 07 | Kit de reparação de molas | 2 | 34219064272 | $68.44 | ENDED | Shop at ECS Tuning | ||||
| 08 | Kit de peças sobresselentes | 2 | 34211154448 | $8.63 | Shop at ECS Tuning | |||||
| 09 | Kit de reparação de molas | 1 | 34219064272 | $68.44 | ENDED | Shop at ECS Tuning | ||||
| 10 | Kit rep. maxilas travão c/molas | 1 | 34219064270 | $113.75 | Shop at ECS Tuning | |||||
Notas
- ENDED = a peça foi descontinuada
