Tubo de travão traseiro for BMW 3 Series E21 320 (1979)

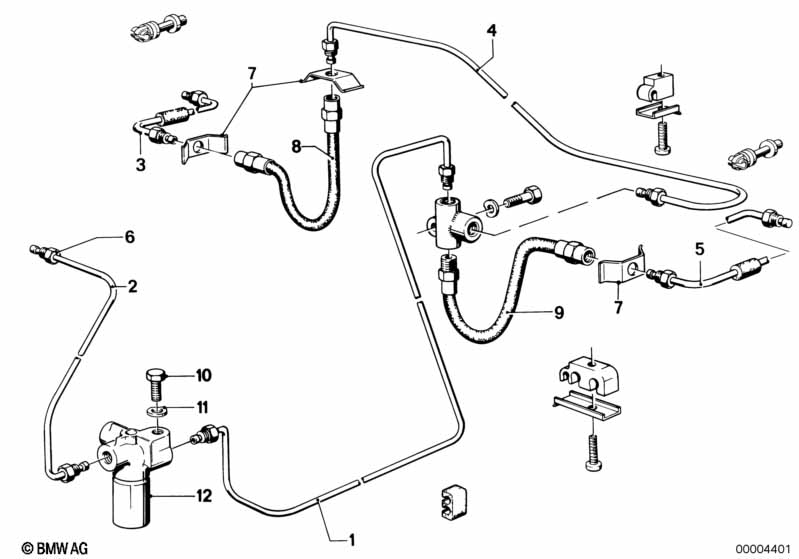

This Tubo de travão traseiro technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tubagem | M10/M10-3120MM | 1 | 34326755686 | $17.08 | Shop at ECS Tuning | ||||
| 02 | Tubagem | M10/M10-1980MM | 1 | 08/1977 | 34326755646 | $8.46 | Shop at ECS Tuning | |||
| 03 | Tubagem | M10/M10-544MM | 1 | 34323412744 | $24.65 | Shop at ECS Tuning | ||||
| 04 | Tubagem | M10/M10-685MM | 1 | 34326755588 | $8.65 | Shop at ECS Tuning | ||||
| 05 | Tubagem | M10/M10-470MM | 1 | 34326755576 | $7.60 | Shop at ECS Tuning | ||||
| 06 | Parafuso de racord | M10X1 | X | 34321151806 | $1.22 | ENDED | Shop at ECS Tuning | |||
| 07 | Mola de segurança | 3 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 08 | Tubo flexível do travão traseiro | L=222MM | 1 | 34321159878 | $38.29 | Shop at ECS Tuning | ||||
| 09 | Tubo flexível do travão traseiro | L=200MM | 1 | 34321159881 | $30.11 | Shop at ECS Tuning | ||||
| 10 | Parafuso sextavado com anilha | M8X12-Z3-1 | 1 | 07119913011 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Disco de mola | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Regulador da pressão de travagem | 1 | 34331116365 | $297.74 | ENDED | Shop at ECS Tuning |
Notas
- ENDED = a peça foi descontinuada
