Grupo hidráulico ASC/unid.comando/fixa. for BMW MINI R56 One (2008)

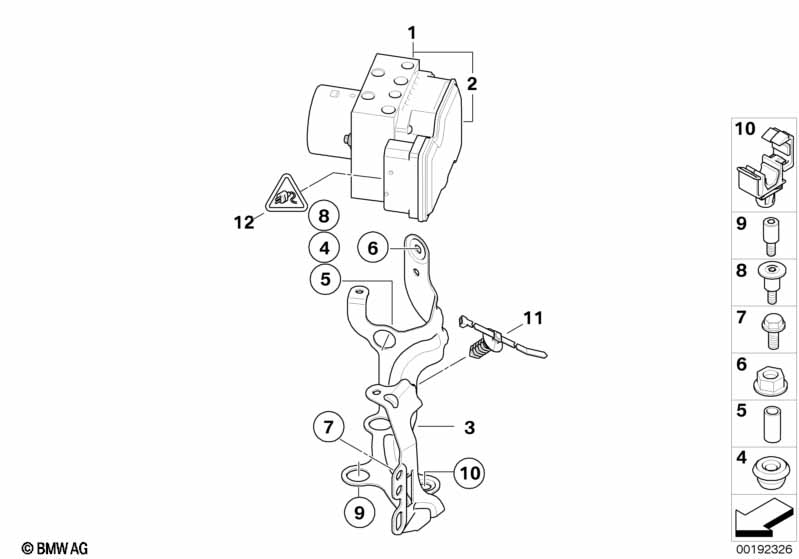

This Grupo hidráulico ASC/unid.comando/fixa. technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para viaturas com Contr. automático estabilidade (ASC+T) |
S214A=Sim |
|||||||||
| 01 | Unidade hidráulica do ASC | 1 | 34506786225 | $1772.27 | Shop at ECS Tuning | |||||
| 02 | Kit rep. unidade comando ASC | 1 | 09/2008 | 34526787635 | $708.73 | Shop at ECS Tuning | ||||
| 03 | Suporte da unidade hidráulica | 1 | 34516790485 | $35.68 | Shop at ECS Tuning | |||||
| 04 | Apoio de borracha | 3 | 03/2009 | 34306773030 | $0.91 | Shop at ECS Tuning | ||||
| apenas indicado para | ||||||||||
| -- | Suporte da unidade hidráulica | X | 03/2009 | 34306773026 | $35.68 | ENDED | Shop at ECS Tuning | |||
| 06 | Porca sextavada | M8-ZNS3 | 1 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Parafuso sextavado | M8X20-8.8ZNS3 | 2 | 07119904401 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Parafuso de colar | 1 | 03/2009 | 07146773028 | $0.82 | ENDED | Shop at ECS Tuning | |||
| apenas indicado para | ||||||||||
| -- | Suporte da unidade hidráulica | X | 03/2009 | 34306773026 | $35.68 | ENDED | Shop at ECS Tuning | |||
| 09 | Perno de rosca | 2 | 03/2009 | 34506778167 | $1.71 | Shop at ECS Tuning | ||||
| 12 | Invólucro fêmea | 38 POL. | 1 | 61136977922 | Shop at ECS Tuning | |||||
| apenas em combinação com | ||||||||||
| -- | Contacto de tomada ELO-Power ELA c/ cabo | 0,2- 0,5 MM² SN | 10 | 61130070581 | Shop at ECS Tuning | |||||
| -- | Contacto de tomada ELO-Power ELA c/ cabo | 0,5- 1,0 MM² SN | 10 | 61130070582 | Shop at ECS Tuning | |||||
| -- | Contacto fêmea MQS ELA | 0,35-0,5 MM² | 10 | 61136901726 | $0.43 | Shop at ECS Tuning | ||||
| -- | Contacto fêmea MQS ELA | 0,75-1,5 MM² | 10 | 61136901728 | $0.35 | Shop at ECS Tuning | ||||
| -- | Capa de protecção | 38 POL. | 1 | 61136920063 | $2.07 | Shop at ECS Tuning | ||||
| -- | Contacto fêmea ELO- Power 5,2 x 0,63 | 1,0- 2,5 MM² | 2 | 61138364846 | $0.50 | Shop at ECS Tuning | ||||
| -- | Contacto fêmea ELO- Power 5,2 x 0,63 | 2,5- 4,0 MM² | 2 | 61138364848 | $0.62 | Shop at ECS Tuning | ||||
| -- | Isolamento monofilar | 0.5-1.0MM² GN | 1 | 61138366245 | $0.17 | Shop at ECS Tuning | ||||
| -- | Isolamento monofilar | 2,5- 4,0 MM² | 1 | 61138372638 | $0.50 | Shop at ECS Tuning | ||||
Notas
- ENDED = a peça foi descontinuada
