Suporte apoio pedais/pedal embraiagem for BMW 1502-2002tii 1602 (1967)

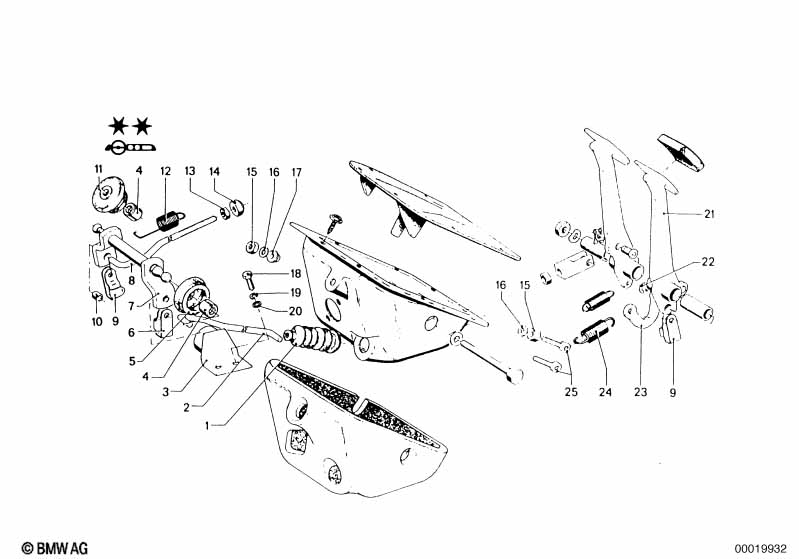

This Suporte apoio pedais/pedal embraiagem technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1967.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guarnição | 1 | 35314440167 | ENDED | Shop at ECS Tuning | |||||
| 02 | Tirante | 1 | 35314440164 | $17.83 | Shop at ECS Tuning | |||||
| 03 | Consola de fixação | 1 | 35314440160 | ENDED | Shop at ECS Tuning | |||||
| 04 | Casquilho distanciador | 2 | 35314440156 | $7.76 | Shop at ECS Tuning | |||||
| 05 | Fole em borracha | 1 | 35314440158 | $3.46 | Shop at ECS Tuning | |||||
| 06 | Grampo | 1 | 21524440169 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| 07 | Veio intermédio | 1 | 35314440155 | ENDED | Shop at ECS Tuning | |||||
| 08 | Tirante de pressão | 1 | 35314440165 | $27.21 | ENDED | Shop at ECS Tuning | ||||
| 09 | Grampo | 1 | 21524440168 | ENDED | Shop at ECS Tuning | |||||
| 10 | Casquilho do apoio | 2 | 35314440159 | $1.14 | ENDED | Shop at ECS Tuning | ||||
| 11 | Capa de protecção | 1 | 35314440157 | $22.53 | Shop at ECS Tuning | |||||
| 12 | Mola de tensão | 1 | 21521100574 | ENDED | Shop at ECS Tuning | |||||
| 13 | Porca sextavada | M8-8-ZNS3 | 1 | 06/1971 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 13 | Porca sextavada | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 14 | Porca | 2 | 21510670090 | $9.57 | Shop at ECS Tuning | |||||
| 17 | Casquilho distanciador | 1 | 35314440117 | ENDED | Shop at ECS Tuning | |||||
| 19 | Disco de mola | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 20 | Anilha | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 21 | Pedal da embraiagem | 1 | 35311101657 | $78.12 | ENDED | Shop at ECS Tuning | ||||
| 22 | Anilha de retenção | 7,0 | 1 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 23 | Patilha | 1 | 35314440119 | $46.91 | ENDED | Shop at ECS Tuning | ||||
| 24 | Mola de tensão | 1 | 35314440118 | $7.38 | ENDED | Shop at ECS Tuning | ||||
| 25 | Parafuso | 1 | 35314440114 | ENDED | Shop at ECS Tuning |
Notas
- ENDED = a peça foi descontinuada
