Jante LL BMW raios estrela 115 for BMW 5 Series E60 525i (2005)

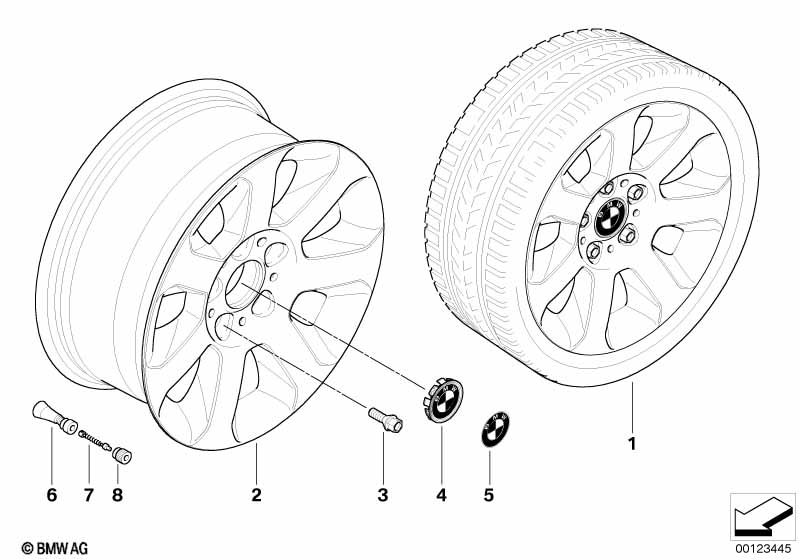

This Jante LL BMW raios estrela 115 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para viaturas com RSC = Runflat-System-Component |
=Não |
|||||||||
| 02 | Jante de liga leve | 7JX16 ET:20 | 4 | 36116758774 | $293.95 | Shop at ECS Tuning | ||||
| 03 | Perno da roda em preto | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Tampão cubo da roda com rebordo cromado | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Emblema BMW estampado/pintado | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 06 | Válvula do pneu | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Interior da válvula | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Tampa de válvula | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notas
- ENDED = a peça foi descontinuada
