Jante LL MINI Crown Spoke 104 for BMW MINI R56 One (2008)

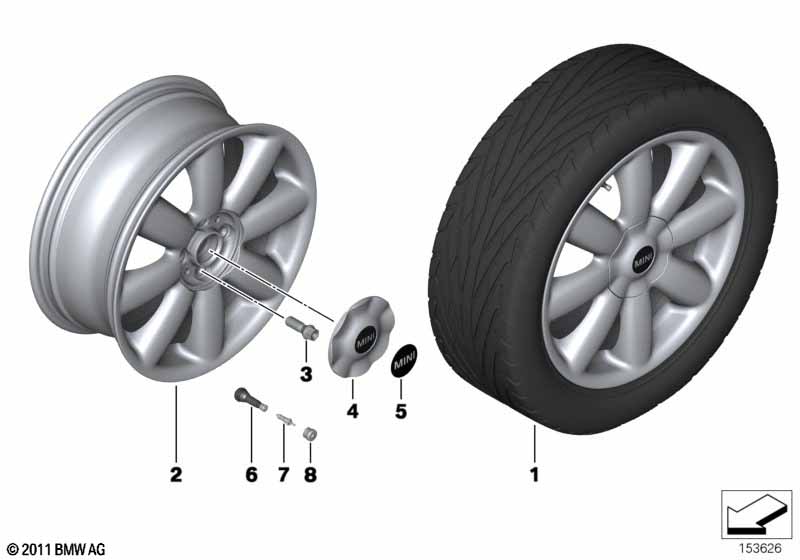

This Jante LL MINI Crown Spoke 104 technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Para viaturas com Jante LL MINI CrownSpoke, caract.emerg. |
S2RPA=Sim |
||||||||
| 02 | Jante de liga leve branco | 7JX17 ET:48 | 4 | 36116769412 | $260.95 | Shop at ECS Tuning | ||||
| 02 | Jante de liga leve Silber | 7JX17 ET:48 | 4 | 36116769411 | $260.95 | Shop at ECS Tuning | ||||
| 02 | Jante de liga leve em preto | 7JX17 ET:48 | 4 | 36116787237 | $260.95 | Shop at ECS Tuning | ||||
| 03 | Perno da roda em preto | M14X1,25 | 16 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Tampão da roda branco | 17" | 4 | 36136771412 | $15.25 | Shop at ECS Tuning | ||||
| 04 | Tampão da roda Silber | 17" | 4 | 36136771002 | $15.25 | Shop at ECS Tuning | ||||
| 04 | Tampão da roda em preto | 17" | 4 | 36106787233 | $15.00 | Shop at ECS Tuning | ||||
| 05 | Emblema MINI com película adesiva | 4 | 36136758687 | $3.58 | Shop at ECS Tuning | |||||
| 06 | Válvula do pneu | L=42,5MM | 4 | 07/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| 07 | Interior da válvula | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Tampa de válvula | 4 | 07/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
