Estrutura lateral - peças individuais for BMW 3 Series E30 320i (1992)

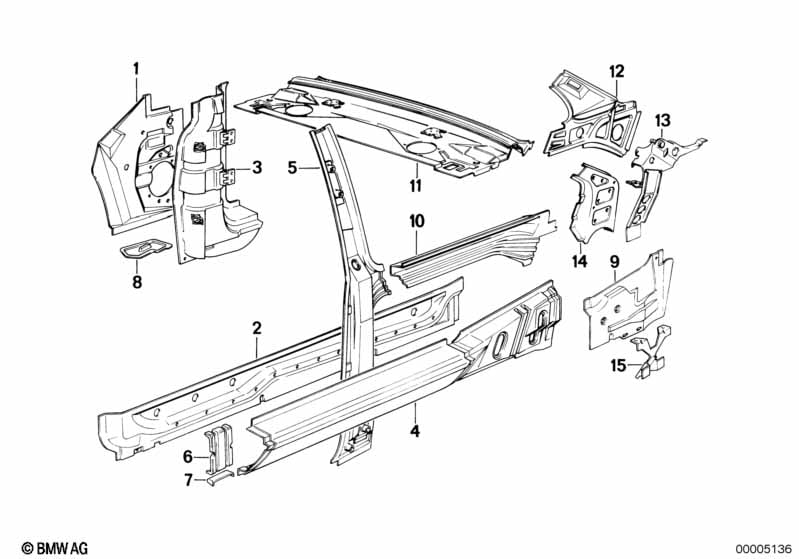

This Estrutura lateral - peças individuais technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para viaturas com Versão para o Japão |
L807A=Sim |
|||||||||
| 06 | Chapa apoio ponto apoio macaco | 2 | 41351913760 | $5.42 | Shop at ECS Tuning | |||||
| 07 | Ponto de apoio do macaco | 4 | 41351913759 | $5.34 | Shop at ECS Tuning | |||||
| 08 | Tampa de fecho esquerda | 1 | 51711916123 | $1.77 | Shop at ECS Tuning | |||||
| 08 | Tampa de fecho direita | 1 | 51711916124 | $1.77 | Shop at ECS Tuning | |||||
| 15 | Apoio da bomba do combustível | 1 | 41111979708 | $3.58 | ENDED | Shop at ECS Tuning | ||||
Notas
- ENDED = a peça foi descontinuada
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Estrutura lateral - peças individuais?
- This technical diagram illustrates the Estrutura lateral - peças individuais within the Carroçaria em bruto group for the 3 Series E30 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Chapa apoio ponto apoio macaco (Part #41351913760).
- Which models use the hardware listed in this Estrutura lateral - peças individuais?
- The hardware and components featured in the Estrutura lateral - peças individuais are specific to the 3 Series E30 320i produced during 1992. These technical specifications ensure that parts like the Chapa apoio ponto apoio macaco (41351913760) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Estrutura lateral - peças individuais assembly?
- Each item in the Estrutura lateral - peças individuais corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Chapa apoio ponto apoio macaco by locating its position on the schematic, which then links to the official BMW part number 41351913760 for the Carroçaria em bruto section.
