Sistema de fecho Porta traseira for BMW 5 Series E12 528i

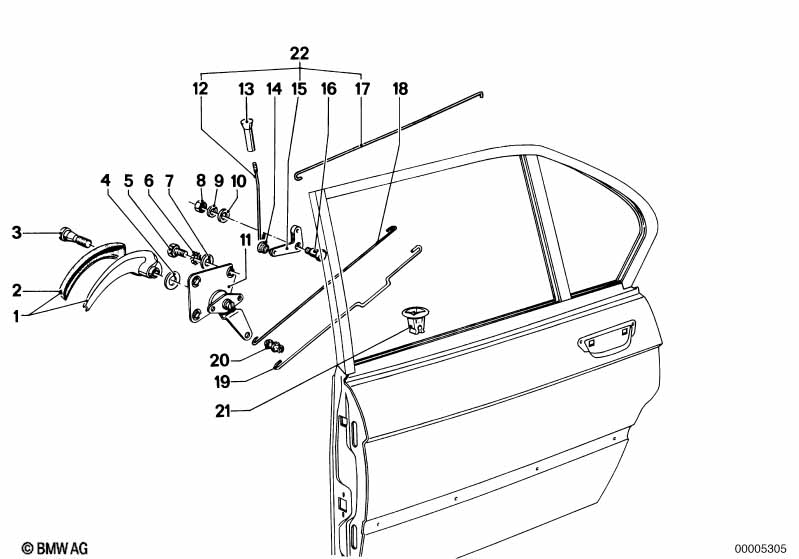

This Sistema de fecho Porta traseira technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Manípulo esquerdo | 1 | 51211806003 | $38.11 | Shop at ECS Tuning | |||||
| 01 | Manípulo direito | 1 | 51211806004 | $38.11 | Shop at ECS Tuning | |||||
| 02 | Cobertura esquerda | 1 | 51211803751 | $4.61 | Shop at ECS Tuning | |||||
| 02 | Cobertura direita | 1 | 51211803752 | $4.61 | Shop at ECS Tuning | |||||
| 03 | Parafuso cónico | 2 | 51211800790 | $0.67 | Shop at ECS Tuning | |||||
| 04 | Tampa | 2 | 51211800789 | $0.55 | Shop at ECS Tuning | |||||
| 05 | Parafuso sextavado | M5X8 | 6 | 07119913212 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Anilha de aperto dentada | A5,1 | 6 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Anilha | 5.3-140 HV-ZNS | 6 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Porca sextavada | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Anilha em preto | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Anilha | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Disco de mola | B6-ZNS3 | 2 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 10 | Anilha | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Comando à distância esquerdo | 1 | 51211800665 | $9.77 | Shop at ECS Tuning | |||||
| 11 | Comando à distância direito | 1 | 51211800666 | $9.77 | Shop at ECS Tuning | |||||
| 12 | Tirante | 2 | 51221815603 | $1.40 | ENDED | Shop at ECS Tuning | ||||
| 13 | Botão | 2 | 51216654120 | $2.40 | ENDED | Shop at ECS Tuning | ||||
| 14 | Casquilho | 4 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
| 15 | Alavanca esquerda | 1 | 51221819359 | $4.79 | Shop at ECS Tuning | |||||
| 15 | Alavanca direita | 1 | 51221819360 | $4.94 | Shop at ECS Tuning | |||||
| 16 | Parafuso de colar | M6 | 2 | 51221818973 | $0.69 | Shop at ECS Tuning | ||||
| 17 | Tirante de união | 2 | 51221809611 | $6.77 | ENDED | Shop at ECS Tuning | ||||
| 18 | Tirante de união | 2 | 51221809598 | ENDED | Shop at ECS Tuning | |||||
| Para viaturas com Elevador dos vidros eléctrico |
=Sim |
|||||||||
| 19 | Tirante de união | 2 | 51221817921 | ENDED | Shop at ECS Tuning | |||||
| 20 | Dispositivo de segurança do tirante | 2 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
| 21 | Grampo | 4 | 51211821224 | $0.42 | Shop at ECS Tuning | |||||
Notas
- ENDED = a peça foi descontinuada
