Parede de resguardo - peças individuais for BMW 3 Series E90 LCI 320i (2011)

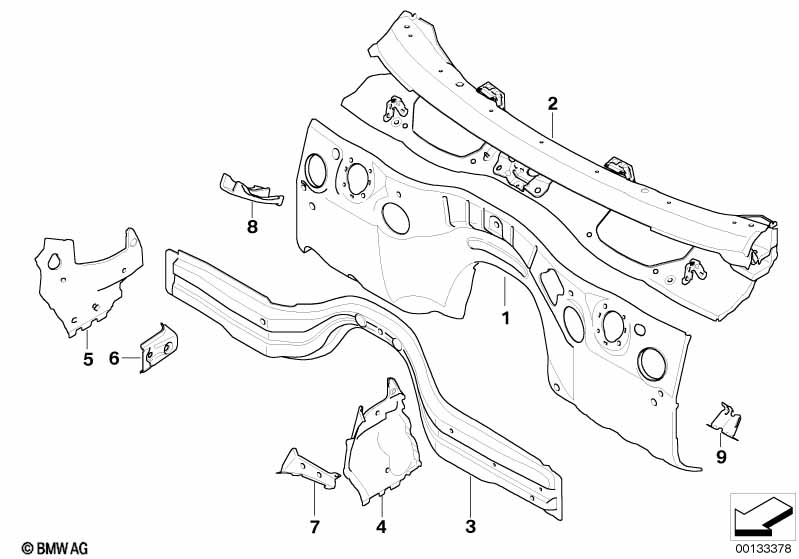

This Parede de resguardo - peças individuais technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Parede de resguardo | 1 | 41137152823 | $596.73 | Shop at ECS Tuning | |||||
| apenas em combinação com | ||||||||||
| -- | Suporte do módulo do pedal do acelerador | 1 | 41127157725 | $3.23 | Shop at ECS Tuning | |||||
| -- | Cobertura direita | 1 | 41117152824 | $5.35 | Shop at ECS Tuning | |||||
| 02 | Divisória inferior | 1 | 41137145309 | $171.37 | Shop at ECS Tuning | |||||
| 03 | Suporte de apoio parede de resguardo | 1 | 41117135636 | $187.52 | Shop at ECS Tuning | |||||
| 04 | Parede separação espaço agregados esq. | 1 | 41137135621 | $15.22 | Shop at ECS Tuning | |||||
| 05 | Parede separação espaço agregados drt. | 1 | 41127135622 | $15.22 | Shop at ECS Tuning | |||||
| 06 | Reforço da parede de separação | 1 | 41217135623 | $11.26 | Shop at ECS Tuning | |||||
| 07 | Chapa term. espaço dos agregados esq. | 1 | 41217135629 | $2.53 | Shop at ECS Tuning | |||||
| 07 | Chapa term. espaço dos agregados drt. | 1 | 41217135630 | $2.53 | Shop at ECS Tuning | |||||
| 08 | Cobertura direita | 1 | 41117152824 | $5.35 | Shop at ECS Tuning | |||||
| 09 | Suporte do módulo do pedal do acelerador | 1 | 41127157725 | $3.23 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320i Parede de resguardo - peças individuais?
- This technical diagram illustrates the Parede de resguardo - peças individuais within the Carroçaria em bruto group for the 3 Series E90 LCI 320i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Parede de resguardo (Part #41137152823).
- Which models use the hardware listed in this Parede de resguardo - peças individuais?
- The hardware and components featured in the Parede de resguardo - peças individuais are specific to the 3 Series E90 LCI 320i produced during 2011. These technical specifications ensure that parts like the Parede de resguardo (41137152823) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Parede de resguardo - peças individuais assembly?
- Each item in the Parede de resguardo - peças individuais corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320i, you can identify the Parede de resguardo by locating its position on the schematic, which then links to the official BMW part number 41137152823 for the Carroçaria em bruto section.
