Capot/peças adicionais for BMW MINI R56 One (2008)

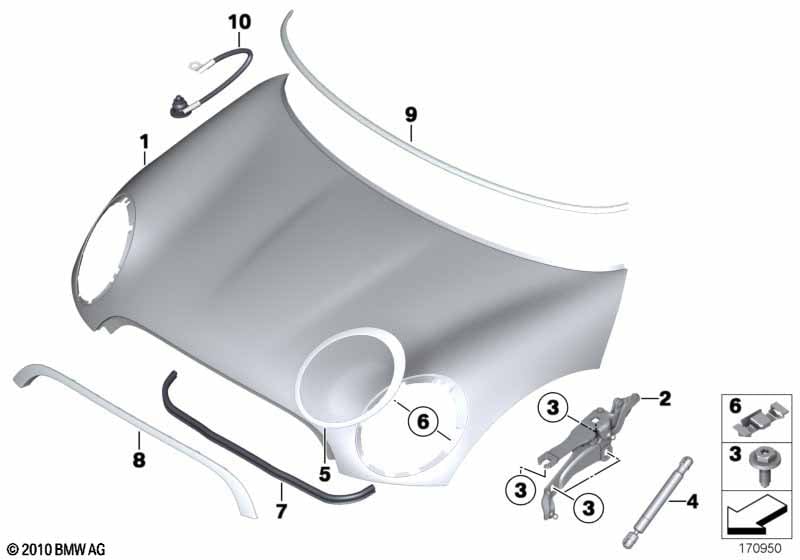

This Capot/peças adicionais technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Capot | 1 | 08/2010 | 41612754738 | $463.64 | Shop at ECS Tuning | ||||
| 02 | Dobradiça esquerda do capot | 1 | 41007211639 | $49.37 | Shop at ECS Tuning | |||||
| 02 | Dobradiça direita do capot | 1 | 41007211640 | $49.37 | Shop at ECS Tuning | |||||
| 03 | Parafuso sextavado com anilha | M8X23 | 4 | 07147131648 | $1.05 | Shop at ECS Tuning | ||||
| 04 | Mola de gás pressurizado do capot | 2 | 51237148864 | $35.08 | Shop at ECS Tuning | |||||
| 05 | Anel embelezador farol esquerdo | CHROM | 1 | 51137149905 | $22.97 | Shop at ECS Tuning | ||||
| 05 | Anel embelezador farol direito | CHROM | 1 | 51137149906 | $22.97 | Shop at ECS Tuning | ||||
| 06 | Clip | 12 | 51132752145 | $0.75 | Shop at ECS Tuning | |||||
| 07 | Vedante capô, parte dianteira | 1 | 51712751261 | $10.84 | Shop at ECS Tuning | |||||
| 08 | Friso decorativo capô | CHROM | 1 | 08/2010 | 51137149957 | $48.57 | ENDED | Shop at ECS Tuning | ||
| 09 | Guarnição capô | CHROM | 1 | 08/2010 | 51137145123 | $24.22 | Shop at ECS Tuning | |||
| 10 | Cabo de massa | 1 | 12427557769 | $15.05 | Shop at ECS Tuning |
Notas
- ENDED = a peça foi descontinuada
