Capô/sistema de fecho for BMW MINI R56 One (2008)

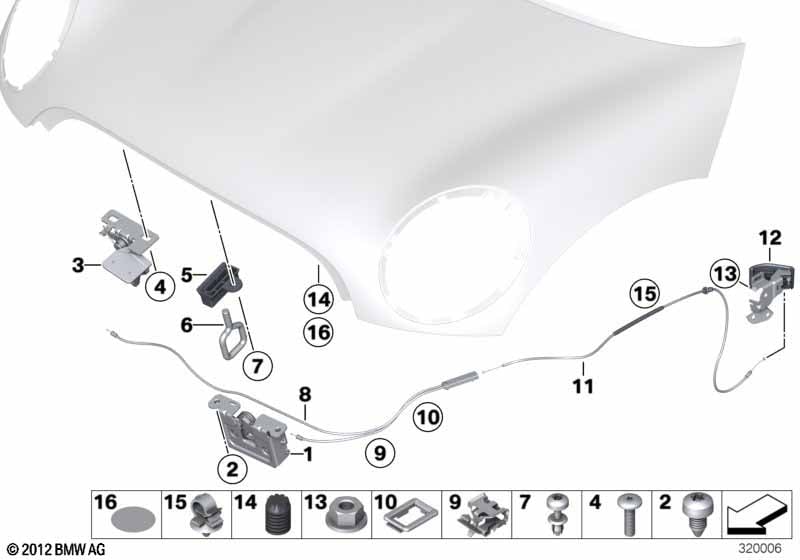

This Capô/sistema de fecho technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fecho do capô | 2 | 51232753419 | $23.85 | Shop at ECS Tuning | |||||
| 02 | Parafuso Torx com anilha | M6X12 | 4 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Gancho de segurança do capot | 1 | 51232753420 | $23.12 | Shop at ECS Tuning | |||||
| 04 | Parafuso Torx com anilha | 2 | 07147142046 | $0.71 | Shop at ECS Tuning | |||||
| 05 | Bloqueio de torção | 2 | 51237002012 | $4.23 | Shop at ECS Tuning | |||||
| 06 | Engate do fecho | 2 | 51237008756 | $5.93 | Shop at ECS Tuning | |||||
| 07 | Rebite de expansão | 2 | 51168197908 | $0.37 | Shop at ECS Tuning | |||||
| 08 | Cabo Bowden dianteiro | 1 | 51232751378 | $15.68 | Shop at ECS Tuning | |||||
| 09 | Clip duplo | 1 | 51642753381 | $1.23 | Shop at ECS Tuning | |||||
| 10 | Protecção de fricção cabo Bowden | 1 | 51642752242 | $0.75 | Shop at ECS Tuning | |||||
| 11 | Cabo Bowden traseiro | 1 | 51237148865 | $13.30 | Shop at ECS Tuning | |||||
| 12 | Alavanca de desbloqueio | 1 | 51237149591 | $7.00 | Shop at ECS Tuning | |||||
| 13 | Porca sextavada com anilha | M6 ZNT | 1 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Batente limitador | 2 | 51232756173 | $1.83 | Shop at ECS Tuning | |||||
| 15 | Clipe de fixação | 3 | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
| 16 | Película protectora | 2 | 51717111215 | $1.30 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 One Capô/sistema de fecho?
- This technical diagram illustrates the Capô/sistema de fecho within the Carroçaria em bruto group for the MINI R56 One produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Fecho do capô (Part #51232753419).
- Which models use the hardware listed in this Capô/sistema de fecho?
- The hardware and components featured in the Capô/sistema de fecho are specific to the MINI R56 One produced during 2008. These technical specifications ensure that parts like the Fecho do capô (51232753419) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Capô/sistema de fecho assembly?
- Each item in the Capô/sistema de fecho corresponds to the numbered list below the illustration. For the MINI R56 One, you can identify the Fecho do capô by locating its position on the schematic, which then links to the official BMW part number 51232753419 for the Carroçaria em bruto section.
