Splitdoor for BMW MINI Clubman R55 Cooper (2006)

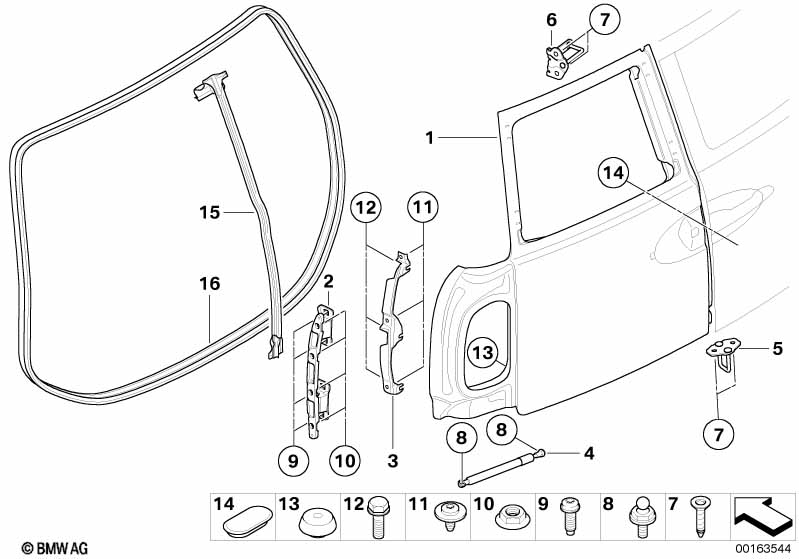

This Splitdoor technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Splitdoor esquerda | 1 | 41545A2A3A3 | Shop at ECS Tuning | ||||||
| 01 | Splitdoor direita | 1 | 41545A2A3A4 | Shop at ECS Tuning | ||||||
| 02 | Dobradiça Splitdoor com primário esq. | 1 | 41542757541 | $75.12 | Shop at ECS Tuning | |||||
| 02 | Dobradiça Splitdoor com primário drt. | 1 | 41542757542 | $75.12 | Shop at ECS Tuning | |||||
| 03 | Suporte esquerdo | 1 | 51247167445 | $17.81 | Shop at ECS Tuning | |||||
| 03 | Suporte direito | 1 | 51247167446 | $17.81 | Shop at ECS Tuning | |||||
| 04 | Mola de gás pressurizado | 2 | 51247167442 | $33.55 | Shop at ECS Tuning | |||||
| 05 | Engate do fecho em baixo | 1 | 51247167499 | $11.90 | Shop at ECS Tuning | |||||
| 06 | Engate do fecho em cima | 1 | 51247167500 | $17.20 | Shop at ECS Tuning | |||||
| 07 | Parafuso de cabeça chata | X | 51219463885 | Shop at ECS Tuning | ||||||
| 08 | Pino esférico | M8 | 4 | 51237131776 | $2.18 | Shop at ECS Tuning | ||||
| 09 | Parafuso Torx com anilha | ISA M10X31 | X | 41517069659 | $25.80 | Shop at ECS Tuning | ||||
| 10 | Porca de flange | M8 | X | 51113414958 | $0.70 | Shop at ECS Tuning | ||||
| 11 | Parafuso de chapa de cabeça lenticular | ISA ST4,2X10,5 | X | 07149124462 | $0.80 | Shop at ECS Tuning | ||||
| 12 | Parafuso hexagonal com flange | M6X10-8.8-ZNS3 | X | 07119904128 | $0.53 | Shop at ECS Tuning | ||||
| 13 | Taco | D=12MM | 2 | 07147127539 | $0.26 | Shop at ECS Tuning | ||||
| 14 | Taco | 14X25.5MM | 1 | 51711863869 | $0.94 | Shop at ECS Tuning | ||||
| 15 | Vedação Splitdoor lado esquerdo | 1 | 51767167241 | $59.64 | Shop at ECS Tuning | |||||
| 16 | Vedação Splitdoor | 1 | 51762757822 | $87.46 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman R55 Cooper Splitdoor?
- This technical diagram illustrates the Splitdoor within the Carroçaria em bruto group for the MINI Clubman R55 Cooper produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Splitdoor esquerda (Part #41545A2A3A3).
- Which models use the hardware listed in this Splitdoor?
- The hardware and components featured in the Splitdoor are specific to the MINI Clubman R55 Cooper produced during 2006. These technical specifications ensure that parts like the Splitdoor esquerda (41545A2A3A3) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Splitdoor assembly?
- Each item in the Splitdoor corresponds to the numbered list below the illustration. For the MINI Clubman R55 Cooper, you can identify the Splitdoor esquerda by locating its position on the schematic, which then links to the official BMW part number 41545A2A3A3 for the Carroçaria em bruto section.
