Clubdoor for BMW MINI Clubman R55 Cooper (2006)

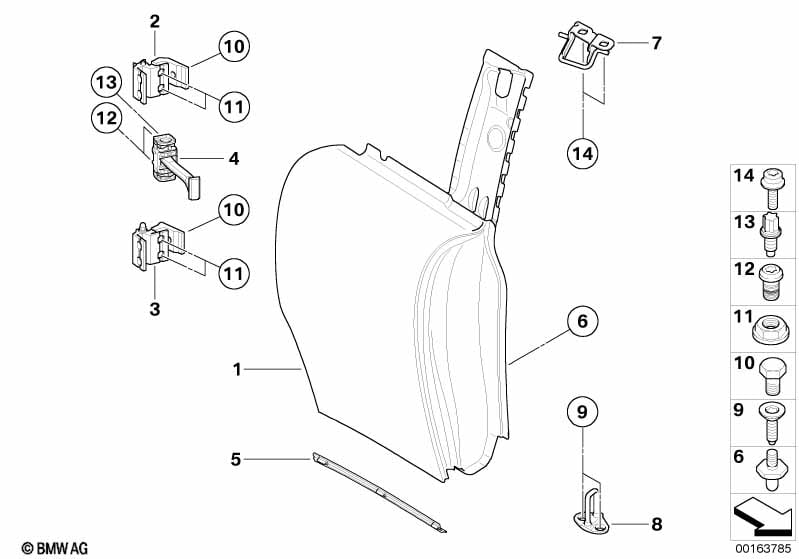

This Clubdoor technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clubdoor | 1 | 01/2012 | 41525A2A319 | Shop at ECS Tuning | |||||
| Importante! Apenas em combinação com Parte superior do cinto dianteiro direito Door opener, Clubdoor Por favor encomendar as peças de 01/2012; para o efeito, entrar no ETK sem o número de chassis. |
||||||||||
| 02 | Dobradiça Clubdoor com primário em cima | 1 | 41522757539 | $44.75 | Shop at ECS Tuning | |||||
| 03 | Dobradiça Clubdoor com primário em baixo | 1 | 41522757540 | $44.75 | Shop at ECS Tuning | |||||
| 04 | Limitador de abertura da porta Clubdoor | 1 | 51227167465 | $50.57 | Shop at ECS Tuning | |||||
| 05 | Vedação junta da porta Clubdoor | 1 | 51717167234 | $17.50 | Shop at ECS Tuning | |||||
| 06 | Gancho de segurança | 1 | 41527167464 | $3.32 | Shop at ECS Tuning | |||||
| 07 | Engate do fecho em cima | 1 | 51227167490 | $17.46 | Shop at ECS Tuning | |||||
| 08 | Engate do fecho em baixo | 1 | 51227167489 | $14.51 | Shop at ECS Tuning | |||||
| 09 | Parafuso de cabeça chata torx | ISA M8X28 | 2 | 07147184164 | $0.65 | Shop at ECS Tuning | ||||
| 10 | Parafuso sextavado com cone | M12X39 | 2 | 01/2018 | 07147184165 | $1.55 | ENDED | Shop at ECS Tuning | ||
| 10 | Parafuso sextavado com cone | M12X35 | 2 | 07148499258 | Shop at ECS Tuning | |||||
| 11 | Porca sextavada com anilha | M8 | 4 | 07146970706 | $1.18 | Shop at ECS Tuning | ||||
| 12 | Parafuso Torx com anilha | ISA M6X12 | 2 | 51226976687 | $0.59 | Shop at ECS Tuning | ||||
| 13 | Parafuso Torx com anilha | ASA M8X22 | 1 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 14 | Parafuso de cabeça cilíndrica | 2 | 51222755871 | $0.81 | Shop at ECS Tuning | |||||
Notas
- ENDED = a peça foi descontinuada
