Tampa do abastecimento for BMW MINI Clubman R55 Cooper (2006)

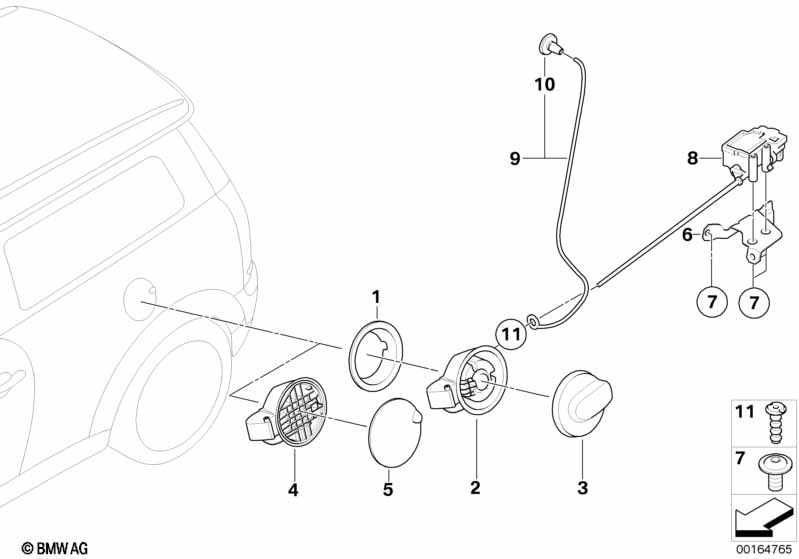

This Tampa do abastecimento technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Apara-gotas | 1 | 51177148884 | $39.63 | Shop at ECS Tuning | |||||
| 05 | Tampa do abastecimento | 1 | 51177148883 | $16.38 | Shop at ECS Tuning | |||||
| Ao encomendar, indicar o código de cor | ||||||||||
| 05 | Tampa do abastecimento pintada | CODE-UNI/MET. | 1 | 51170430311 | $135.52 | ENDED | Shop at ECS Tuning | |||
| 06 | Suporte do servomecanismo | 1 | 51257174587 | $5.81 | Shop at ECS Tuning | |||||
| 07 | Parafuso de cabeça oval com rebordo | M6X10 | 2 | 07147077846 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Servoactuador tampa do abastecimento | 1 | 67112757022 | $57.47 | Shop at ECS Tuning | |||||
| 09 | Tira puxar accion.emerg.tampa abastecim. | 1 | 51252755092 | $2.06 | Shop at ECS Tuning | |||||
| 10 | Accionamento de emergência | 1 | 51258234143 | $0.93 | Shop at ECS Tuning | |||||
| 11 | Casquilho em borracha | 1 | 51257075026 | $3.48 | Shop at ECS Tuning | |||||
Notas
- ENDED = a peça foi descontinuada
