Estrutura lateral for BMW MINI Cabrio F67 JCW (2025)

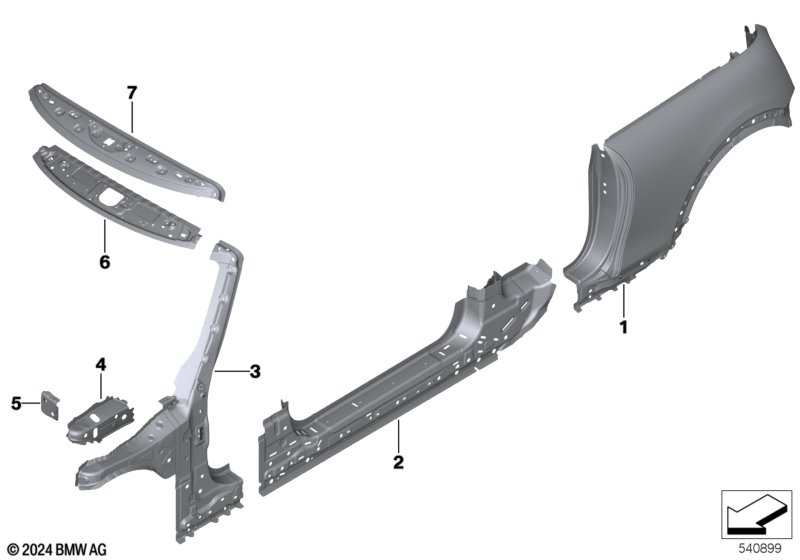

This Estrutura lateral technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F67 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Painel lateral traseiro esquerdo | 1 | 41305A7E625 | Shop at ECS Tuning | ||||||
| 01 | Painel lateral traseiro direito | 1 | 41305A7E626 | Shop at ECS Tuning | ||||||
| 02 | Soleira exterior esquerda | 1 | 41007430315 | Shop at ECS Tuning | ||||||
| 02 | Soleira exterior direita | 1 | 41007430316 | Shop at ECS Tuning | ||||||
| 03 | Pilar A exterior esquerdo | 1 | 41007430335 | Shop at ECS Tuning | ||||||
| 03 | Pilar A exterior direito | 1 | 41007430336 | Shop at ECS Tuning | ||||||
| 04 | Suporte de apoio cava da roda interior esq. | 1 | 41007387005 | Shop at ECS Tuning | ||||||
| 04 | Suporte de apoio cava da roda interior dir. | 1 | 41007387006 | Shop at ECS Tuning | ||||||
| 05 | Antepara suporte de apoio esquerdo | 1 | 41007387009 | Shop at ECS Tuning | ||||||
| 05 | Antepara suporte de apoio direito | 1 | 41007387010 | Shop at ECS Tuning | ||||||
| 06 | Painel de resguardo superior | 1 | 41007430339 | Shop at ECS Tuning | ||||||
| 07 | Resguardo do pára-brisas | 1 | 41007417929 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F67 JCW Estrutura lateral?
- This technical diagram illustrates the Estrutura lateral within the Carroçaria em bruto group for the MINI Cabrio F67 JCW produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Painel lateral traseiro esquerdo (Part #41305A7E625).
- Which models use the hardware listed in this Estrutura lateral?
- The hardware and components featured in the Estrutura lateral are specific to the MINI Cabrio F67 JCW produced during 2025. These technical specifications ensure that parts like the Painel lateral traseiro esquerdo (41305A7E625) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Estrutura lateral assembly?
- Each item in the Estrutura lateral corresponds to the numbered list below the illustration. For the MINI Cabrio F67 JCW, you can identify the Painel lateral traseiro esquerdo by locating its position on the schematic, which then links to the official BMW part number 41305A7E625 for the Carroçaria em bruto section.
