Revestimento M diant. for BMW 3 Series E36 318is (1996)

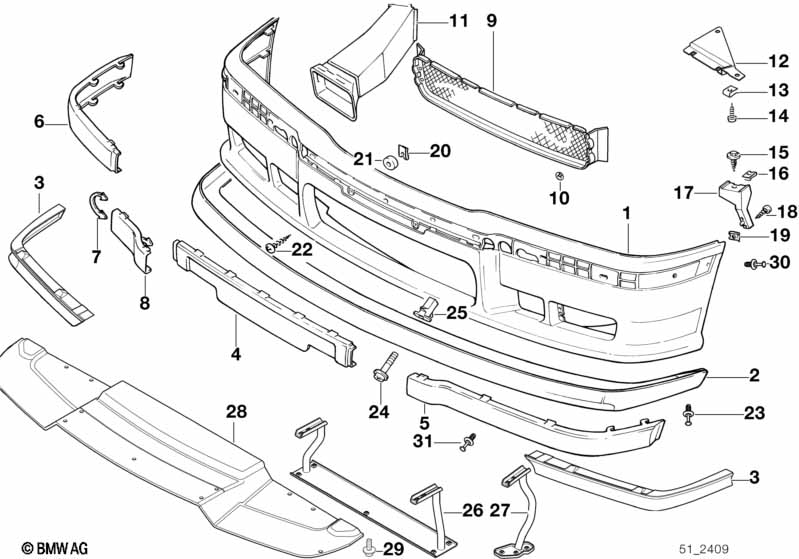

This Revestimento M diant. technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Apenas indicado para Série Individual 94 Class II |
|||||||||
| 01 | Revestimento do pára-choques dianteiro | M TECHNIC | 1 | 51112264370 | $331.27 | Shop at ECS Tuning | ||||
| 02 | Spoiler dianteiro | M TECHNIC | 1 | 51112251767 | $73.00 | Shop at ECS Tuning | ||||
| 03 | Parte inferior esquerda | M TECHNIC | 1 | 51112264029 | $173.85 | Shop at ECS Tuning | ||||
| 03 | Parte inferior direita | M TECHNIC | 1 | 51112264030 | $173.85 | Shop at ECS Tuning | ||||
| 04 | Friso de protecção | M TECHNIC | 1 | 51112233352 | $33.87 | Shop at ECS Tuning | ||||
| 05 | Friso de protecção esquerdo | M TECHNIC | 1 | 51112233779 | $31.65 | Shop at ECS Tuning | ||||
| 06 | Friso de protecção direito | M TECHNIC | 1 | 51112233780 | $31.65 | Shop at ECS Tuning | ||||
| 07 | Cinta de retenção | 1 | 51118122335 | $0.35 | Shop at ECS Tuning | |||||
| 08 | Cobertura | M TECHNIC | 1 | 51112233354 | $9.92 | Shop at ECS Tuning | ||||
| 09 | Cobertura com primário | M TECHNIC | 1 | 51112250685 | $84.28 | ENDED | Shop at ECS Tuning | |||
| 10 | Porca de segurança | 8 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 11 | Conduta de ar do travão diant. esq. | M TECHNIC | 1 | 51712233361 | $21.51 | Shop at ECS Tuning | ||||
| 11 | Conduta de ar do travão diant. dir. | M TECHNIC | 1 | 51712233362 | $21.51 | Shop at ECS Tuning | ||||
| 12 | Cobertura esquerda | M TECHNIC | 1 | 51112265583 | Shop at ECS Tuning | |||||
| 12 | Cobertura direita | M TECHNIC | 1 | 51112265584 | Shop at ECS Tuning | |||||
| 13 | Porca de chapa | ST4,8-9-ZNS3 | 4 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Parafuso sextavado de chapa | ST4,8X22-C-Z2 | 8 | 07119916944 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Parafuso sextavado de chapa | ST4,8X19-C-Z2 | 2 | 07119916949 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Porca de chapa | ST4,8-9-ZNS3 | 2 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Dispositivo de fixação esquerdo | M TECHNIC | 1 | 51112233845 | $3.08 | Shop at ECS Tuning | ||||
| 17 | Dispositivo de fixação direito | M TECHNIC | 1 | 51112233846 | $3.08 | Shop at ECS Tuning | ||||
| 18 | Parafuso de chapa | 4,2X13 | 4 | 07119904310 | $0.38 | Shop at ECS Tuning | ||||
| 19 | Porca de chapa | ST4,2-3-ZNS3 | 4 | 07129904221 | $0.25 | Shop at ECS Tuning | ||||
| 20 | Porca de chapa | ST4,8-9-ZNS3 | 2 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 21 | Anilha distanciadora | 6,5X20X3 | 2 | 46631456155 | $0.63 | Shop at ECS Tuning | ||||
| 22 | Parafuso de chapa de cabeça lenticular | ST4,8X16 | 2 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 23 | Rebite de expansão | 4 | 51111964186 | $0.37 | Shop at ECS Tuning | |||||
| 24 | Parafuso sextavado | TS5X17 SW8 D=16 | 7 | 07149126885 | $0.49 | Shop at ECS Tuning | ||||
| 24 | Parafuso sextavado | TS5X17 SW8 D=22 | 7 | 07149126886 | Shop at ECS Tuning | |||||
| 25 | Porca de encaixe | M TECHNIC | 7 | 51112252200 | $0.85 | Shop at ECS Tuning | ||||
| 26 | Suporte | M TECHNIC | 1 | 51242264033 | ENDED | Shop at ECS Tuning | ||||
| 27 | Suporte direito | M TECHNIC | 1 | 51112264032 | ENDED | Shop at ECS Tuning | ||||
| 27 | Suporte esquerdo | M TECHNIC | 1 | 51242264031 | Shop at ECS Tuning | |||||
| 28 | Spoiler dianteiro | M TECHNIC | 1 | 51112264028 | $382.79 | Shop at ECS Tuning | ||||
| 29 | Parafuso Torx com anilha | ISA M6X17 | X | 07146986927 | $0.47 | Shop at ECS Tuning | ||||
| 30 | Mola de expansão preta | L=15MM | X | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 31 | Rebite de expansão | D = 6MM | 4 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
Notas
- ENDED = a peça foi descontinuada
