Guia do vidro dianteiro for BMW 1502-2002tii 1802 (1971)

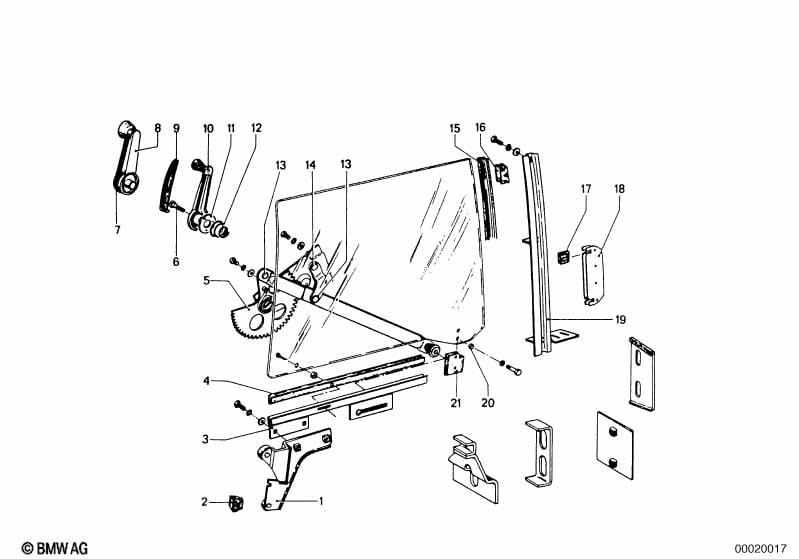

This Guia do vidro dianteiro technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Suporte esquerdo | 1 | 51326654165 | ENDED | Shop at ECS Tuning | |||||
| 01 | Suporte direito | 1 | 51326654166 | ENDED | Shop at ECS Tuning | |||||
| 03 | Calha de guia do vidro esquerda | 1 | 51321813181 | $42.18 | Shop at ECS Tuning | |||||
| 03 | Calha de guia do vidro direita | 1 | 51321813182 | $42.18 | Shop at ECS Tuning | |||||
| 04 | Borracha de vedação | X | 51326540282 | $9.69 | Shop at ECS Tuning | |||||
| 05 | Elevador do vidro dianteiro esquerdo | 1 | 51321801135 | $125.50 | ENDED | Shop at ECS Tuning | ||||
| 05 | Levanta vidro dianteiro direito | 1 | 51321801136 | $125.50 | Shop at ECS Tuning | |||||
| 06 | Parafuso cónico | 2 | 51211800790 | $0.67 | Shop at ECS Tuning | |||||
| 08 | Manivela do vidro | 1 | 51321809762 | $43.17 | ENDED | Shop at ECS Tuning | ||||
| 11 | Anilha de encosto | SCHWARZ | 2 | 51321819852 | $6.12 | Shop at ECS Tuning | ||||
| 12 | Mola cónica | 2 | 51321870460 | $1.19 | Shop at ECS Tuning | |||||
| 13 | Perno | 4 | 51321829986 | $5.34 | ENDED | Shop at ECS Tuning | ||||
| 14 | Perno | 2 | 51321829989 | $1.10 | ENDED | Shop at ECS Tuning | ||||
| 15 | Guia do vidro dianteiro | X | 51326654262 | $68.24 | Shop at ECS Tuning | |||||
| 16 | Grampo | 6 | 51321817560 | $1.07 | ENDED | Shop at ECS Tuning | ||||
| 17 | Peça deslizante | 4 | 51326454347 | ENDED | Shop at ECS Tuning | |||||
| 18 | Suporte | 2 | 51326454165 | ENDED | Shop at ECS Tuning | |||||
| 19 | Calha de guia do vidro esquerda | 1 | 51326454154 | ENDED | Shop at ECS Tuning | |||||
| 19 | Calha de guia do vidro direita | 1 | 51326454155 | ENDED | Shop at ECS Tuning | |||||
| 20 | Casquilho | 4 | 51327041760 | $2.09 | Shop at ECS Tuning | |||||
| 21 | Apoio de borracha | 2 | 51326454169 | ENDED | Shop at ECS Tuning |
Notas
- ENDED = a peça foi descontinuada
