Painel frontal for BMW 6 Series G32 GT 630dX

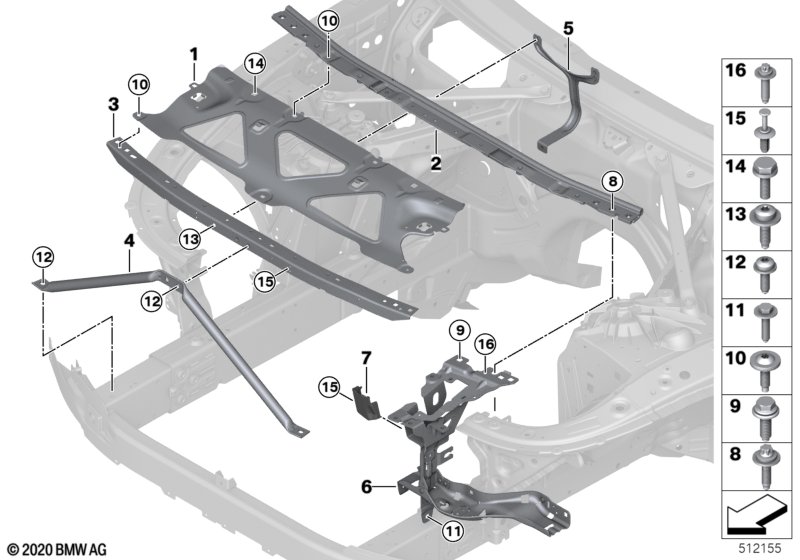

This Painel frontal technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630dX. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ligação transversal dianteira | 1 | 51647409748 | Shop at ECS Tuning | ||||||
| 02 | Ligação traseira superior | 1 | 51647357205 | Shop at ECS Tuning | ||||||
| 03 | Ligação dianteira superior | 1 | 51647357209 | Shop at ECS Tuning | ||||||
| 04 | Apoio em V | 1 | 51647409749 | Shop at ECS Tuning | ||||||
| 05 | Tirante Y | 1 | 51647437514 | Shop at ECS Tuning | ||||||
| Para viaturas com Equipamento adicional específico UE |
S230A=Sim |
|||||||||
| 05 | Tirante Y | 1 | 51647437514 | Shop at ECS Tuning | ||||||
| Para viaturas com Farol de LEDs adaptativo |
S552A=Sim |
|||||||||
| 06 | Suporte farol esquerdo | 1 | 51647375325 | Shop at ECS Tuning | ||||||
| 06 | Suporte farol direito | 1 | 51647375326 | Shop at ECS Tuning | ||||||
| Para viaturas com Farol de LEDs adaptativo |
S552A=Não |
|||||||||
| 06 | Suporte farol esquerdo | 1 | 51647357213 | Shop at ECS Tuning | ||||||
| 06 | Suporte farol direito | 1 | 51647357214 | Shop at ECS Tuning | ||||||
| 07 | Resguardo da fechadura esquerdo | 1 | 51747407767 | Shop at ECS Tuning | ||||||
| 07 | Resguardo da fechadura direito | 1 | 51747407768 | Shop at ECS Tuning | ||||||
| 08 | Parafuso Torx com anilha | BM8X30-PC-ZNS3 | 4 | 07119908006 | Shop at ECS Tuning | |||||
| 09 | Parafuso sextavado | M8X20-PC-ZNS3 | 2 | 51649907859 | Shop at ECS Tuning | |||||
| 10 | Parafuso de cabeça lenticular com anilha | ISA M6X21 | 9 | 07147263759 | Shop at ECS Tuning | |||||
| 11 | Parafuso sextavado com anilha | M8X25-PC-U2-8.8 | 6 | 07119908735 | Shop at ECS Tuning | |||||
| 12 | Parafuso Torx com anilha | ISA M8X25 | 4 | 07147301867 | Shop at ECS Tuning | |||||
| 13 | Parafuso de cabeça chata | M6X20-PCU2-10.9 | 3 | 07119908698 | Shop at ECS Tuning | |||||
| 14 | Parafuso sextavado com anilha | M8X28-10.9-ZNS3 | 2 | 07149390155 | Shop at ECS Tuning | |||||
| 15 | Rebite de expansão | D = 6MM | 4 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 16 | Parafuso ASA com anilha | M10X40-10.9 | 2 | 22116854245 | Shop at ECS Tuning | |||||
