Tapetes Velours for BMW 6 Series G32 GT 630dX

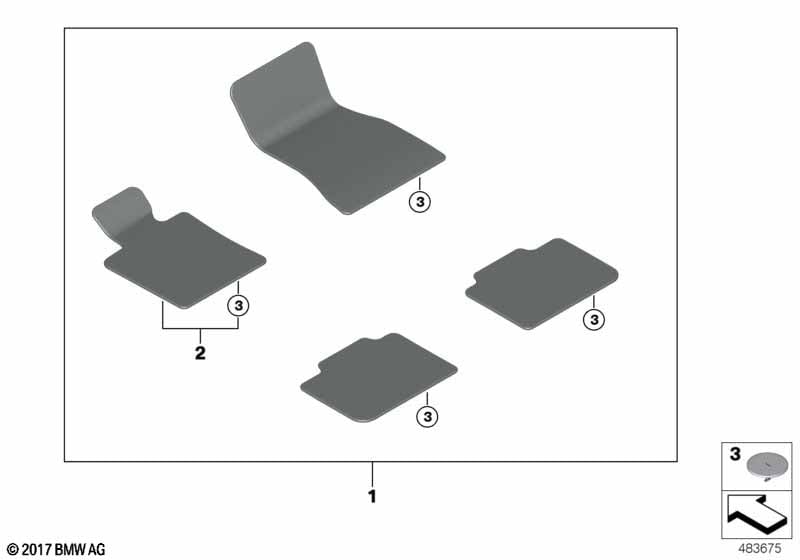

This Tapetes Velours technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630dX. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Para viaturas com Tapetes Velours |
S423A=Sim |
||||||||
| 01 | Jogo de tapetes | SCHWARZ | 1 | 51476998189 | Shop at ECS Tuning | |||||
| Para viaturas com Pele Dakota/preto/azul contraste |
LCNL=Sim |
|||||||||
| 01 | Jogo de tapetes | SCHWARZ/BLAU | 1 | 07/2019 | 51477943005 | ENDED | Shop at ECS Tuning | |||
| 01 | Jogo de tapetes | SCHWARZ M | 1 | 51479500392 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com canberra-beige ou canberrabeige Exklusivnaht/Keder |
CY=Sim DO=Sim |
|||||||||
| 01 | Jogo de tapetes | CANBERRABEIGE | 1 | 51476998188 | Shop at ECS Tuning | |||||
| 02 | Tapete, lado do condutor | SCHWARZ | 1 | 51477943010 | Shop at ECS Tuning | |||||
| Para viaturas com Pele Dakota/preto/azul contraste |
LCNL=Sim |
|||||||||
| 02 | Tapete, lado do condutor | SCHWARZ/BLAU | 1 | 07/2019 | 51477943007 | ENDED | Shop at ECS Tuning | |||
| 02 | Tapete, lado do condutor | SCHWARZ M | 1 | 51479500394 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com canberra-beige ou canberrabeige Exklusivnaht/Keder |
CY=Sim DO=Sim |
|||||||||
| 02 | Tapete, lado do condutor | CANBERRABEIGE | 1 | 51477943009 | Shop at ECS Tuning | |||||
| 03 | Elemento de velcro com fixação de baioneta | D62MM/L14MM | 8 | 07149166609 | Shop at ECS Tuning | |||||
Notas
- ENDED = a peça foi descontinuada
- NoS = No Stock (Peça não armazenada centralmente.)
