Peças de montagem quartela porta tras. for BMW 6 Series G32 GT 630dX

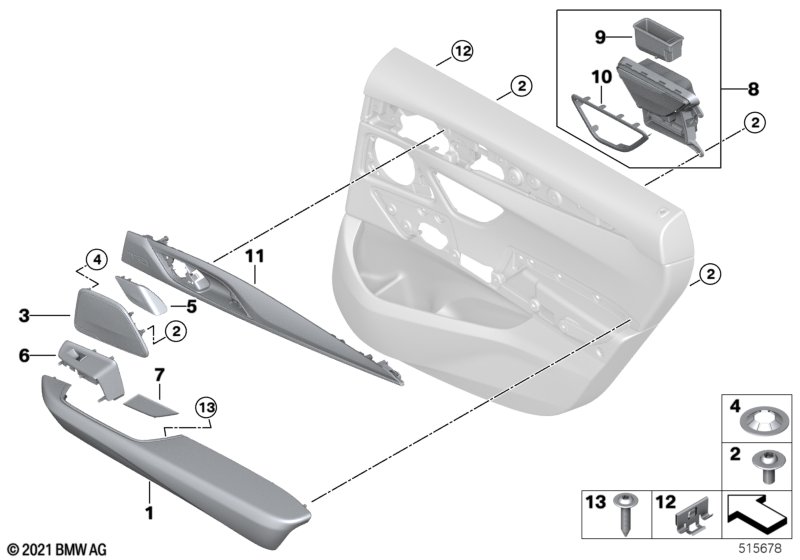

This Peças de montagem quartela porta tras. technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630dX. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para viaturas com Pele Exclusiva nappa/mokka/costura excl. |
LZNI=Sim |
|||||||||
| 01 | Apoio de braço traseiro esquerdo | MOKKA | 1 | 51427466761 | NoS | Shop at ECS Tuning | ||||
| 01 | Apoio de braço traseiro direito | MOKKA | 1 | 51427466762 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Pele Exclusiva nappa/preta/costura excl. |
LZFK=Sim |
|||||||||
| 01 | Apoio de braço traseiro esquerdo | SCHWARZ | 1 | 51427466759 | Shop at ECS Tuning | |||||
| 01 | Apoio de braço traseiro direito | SCHWARZ | 1 | 51427466760 | Shop at ECS Tuning | |||||
| Para viaturas com Pele Dakota/preto/azul contraste |
LCNL=Sim |
|||||||||
| 01 | Apoio de braço traseiro esquerdo | SCHWARZ/BLAU | 1 | 51428073769 | NoS | Shop at ECS Tuning | ||||
| 01 | Apoio de braço traseiro direito | SCHWARZ/BLAU | 1 | 51428073770 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Pele Dakota/cognac ou Pele Dakota/cognac/costura exclusiva |
LCRI=Sim LCRO=Sim |
|||||||||
| 01 | Apoio de braço traseiro esquerdo | COGNAC | 1 | 51427466753 | NoS | Shop at ECS Tuning | ||||
| 01 | Apoio de braço traseiro direito | COGNAC | 1 | 51427466754 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Pele Dakota/preto/cost. excl. ou Pele "Dakota"/preto |
LCFK=Sim LCSW=Sim |
|||||||||
| 01 | Apoio de braço traseiro esquerdo | SCHWARZ | 1 | 51427466751 | NoS | Shop at ECS Tuning | ||||
| 01 | Apoio de braço traseiro direito | SCHWARZ | 1 | 51427466752 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Pele Exclusiva nappa/branco marfim ou Pele Exclusiva nappa/branco marfim |
LZFF=Sim LZFI=Sim |
|||||||||
| 01 | Apoio de braço traseiro esquerdo | ELFENBEINWEISS | 1 | 51427466757 | NoS | Shop at ECS Tuning | ||||
| 01 | Apoio de braço traseiro direito | ELFENBEINWEISS | 1 | 51427466758 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Pele Dakota/canberra-beige ou Pele Dakota/canberra bege/costura excl. |
LCCY=Sim LCDO=Sim |
|||||||||
| 01 | Apoio de braço traseiro esquerdo | CANBERRABEIGE | 1 | 51427466747 | NoS | Shop at ECS Tuning | ||||
| 01 | Apoio de braço traseiro direito | CANBERRABEIGE | 1 | 51427466748 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Pele "Dakota/elfenbein-weiss" ou Pele Dakota/elfenbein-weiss/cost. excl. ou Pele Dakota/elfenbein-weiss/cost. excl. |
LCEW=Sim LCFF=Sim LCFI=Sim |
|||||||||
| 01 | Apoio de braço traseiro esquerdo | ELFENBEINWEISS | 1 | 51427466749 | NoS | Shop at ECS Tuning | ||||
| 01 | Apoio de braço traseiro direito | ELFENBEINWEISS | 1 | 51427466750 | NoS | Shop at ECS Tuning | ||||
| 02 | Parafuso de cabeça oval | TS4X10 ISA | X | 07147270744 | Shop at ECS Tuning | |||||
| Para viaturas com Bowers & Wilkins High End Sound System |
S6F1A=Sim |
|||||||||
| 03 | Guarnição altifalante de médios esq. | B & W | 1 | 65136824625 | Shop at ECS Tuning | |||||
| 03 | Guarnição altifalante de médios dir. | B & W | 1 | 65136824626 | Shop at ECS Tuning | |||||
| Para viaturas com Sistema som Surround Harman/Kardon |
S688A=Sim |
|||||||||
| 03 | Guarnição altifalante de médios esq. | TITAN | 1 | 51427416805 | Shop at ECS Tuning | |||||
| 03 | Guarnição altifalante de médios dir. | TITAN | 1 | 51427416806 | Shop at ECS Tuning | |||||
| Para viaturas com Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S688A=Não S6F1A=Não |
|||||||||
| 03 | Tampa do altifalante esquerdo | SCHWARZ | 1 | 51427466767 | NoS | Shop at ECS Tuning | ||||
| 03 | Tampa do altifalante direito | SCHWARZ | 1 | 51427466768 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System e elfenbein-weiss ou Costura excl./reforço "elfenbein-weiss" ou branco"elfenbein" cst.exc./reforço cont. |
S688A=Não S6F1A=Não EW=Sim FF=Sim FI=Sim |
|||||||||
| 03 | Tampa do altifalante esquerdo | ELFENBEINWEISS | 1 | 51427466765 | Shop at ECS Tuning | |||||
| 03 | Tampa do altifalante direito | ELFENBEINWEISS | 1 | 51427466766 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System e canberra-beige ou canberrabeige Exklusivnaht/Keder ou canberrabeige Exklusivnaht/Keder ou canberra-beige |
S688A=Não S6F1A=Não CY=Sim DO=Sim EA=Sim FY=Sim |
|||||||||
| 03 | Tampa do altifalante esquerdo | CANBERRABEIGE | 1 | 51427466763 | NoS | Shop at ECS Tuning | ||||
| 03 | Tampa do altifalante direito | CANBERRABEIGE | 1 | 51427466764 | NoS | Shop at ECS Tuning | ||||
| 04 | Anilha de retenção | M6 | X | 54318246804 | $5.46 | Shop at ECS Tuning | ||||
| Para viaturas com Bowers & Wilkins High End Sound System |
S6F1A=Sim |
|||||||||
| 05 | Tampa do tweeter esquerdo | 1 | 65139350985 | Shop at ECS Tuning | ||||||
| 05 | Tampa do tweeter direito | 1 | 65139350986 | Shop at ECS Tuning | ||||||
| Para viaturas com Sistema som Surround Harman/Kardon |
S688A=Sim |
|||||||||
| 05 | Tampa do tweeter esquerdo | TITAN | 1 | 51427418437 | Shop at ECS Tuning | |||||
| 05 | Tampa do tweeter direito | TITAN | 1 | 51427418438 | Shop at ECS Tuning | |||||
| Para viaturas com Sistema de altifalantes HiFi |
S676A=Sim |
|||||||||
| 05 | Painel altifalante de agudos tras. esq. | TITAN | 1 | 51427475137 | NoS | Shop at ECS Tuning | ||||
| 05 | Painel altifalante de agudos tras. dir. | TITAN | 1 | 51427475138 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Cortina protectora sol tras./ lateral |
S416A=Sim |
|||||||||
| 06 | Guarnição interruptor levanta-vidro esq. | SCHWARZ | 1 | 51427466779 | Shop at ECS Tuning | |||||
| 06 | Guarnição interruptor levanta-vidro dir. | SCHWARZ | 1 | 51427466780 | Shop at ECS Tuning | |||||
| Para viaturas com Cortina protectora sol tras./ lateral |
S416A=Não |
|||||||||
| 06 | Guarnição interruptor levanta-vidro esq. | SCHWARZ | 1 | 51427466773 | NoS | Shop at ECS Tuning | ||||
| 06 | Guarnição interruptor levanta-vidro dir. | SCHWARZ | 1 | 51427466774 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Cortina protectora sol tras./ lateral e elfenbein-weiss ou Costura excl./reforço "elfenbein-weiss" ou branco"elfenbein" cst.exc./reforço cont. |
S416A=Não EW=Sim FF=Sim FI=Sim |
|||||||||
| 06 | Guarnição interruptor levanta-vidro esq. | ELFENBEINWEISS | 1 | 51427466771 | NoS | Shop at ECS Tuning | ||||
| 06 | Guarnição interruptor levanta-vidro dir. | ELFENBEINWEISS | 1 | 51427466772 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Cortina protectora sol tras./ lateral e elfenbein-weiss ou Costura excl./reforço "elfenbein-weiss" ou branco"elfenbein" cst.exc./reforço cont. |
S416A=Sim EW=Sim FF=Sim FI=Sim |
|||||||||
| 06 | Guarnição interruptor levanta-vidro esq. | ELFENBEINWEISS | 1 | 51427466777 | NoS | Shop at ECS Tuning | ||||
| 06 | Guarnição interruptor levanta-vidro dir. | ELFENBEINWEISS | 1 | 51427466778 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Cortina protectora sol tras./ lateral e canberra-beige ou canberrabeige Exklusivnaht/Keder ou canberrabeige Exklusivnaht/Keder ou canberra-beige |
S416A=Não CY=Sim DO=Sim EA=Sim FY=Sim |
|||||||||
| 06 | Guarnição interruptor levanta-vidro esq. | CANBERRABEIGE | 1 | 51427466769 | NoS | Shop at ECS Tuning | ||||
| 06 | Guarnição interruptor levanta-vidro dir. | CANBERRABEIGE | 1 | 51427466770 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Cortina protectora sol tras./ lateral e canberra-beige ou canberrabeige Exklusivnaht/Keder ou canberrabeige Exklusivnaht/Keder ou canberra-beige |
S416A=Sim CY=Sim DO=Sim EA=Sim FY=Sim |
|||||||||
| 06 | Guarnição interruptor levanta-vidro esq. | CANBERRABEIGE | 1 | 51427466775 | NoS | Shop at ECS Tuning | ||||
| 06 | Guarnição interruptor levanta-vidro dir. | CANBERRABEIGE | 1 | 51427466776 | NoS | Shop at ECS Tuning | ||||
| 07 | Cobertura esquerda | SCHWARZ | 1 | 51427466785 | NoS | Shop at ECS Tuning | ||||
| 07 | Cobertura direita | SCHWARZ | 1 | 51427466786 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com elfenbein-weiss ou Costura excl./reforço "elfenbein-weiss" ou branco"elfenbein" cst.exc./reforço cont. |
EW=Sim FF=Sim FI=Sim |
|||||||||
| 07 | Cobertura esquerda | ELFENBEINWEISS | 1 | 51427466783 | NoS | Shop at ECS Tuning | ||||
| 07 | Cobertura direita | ELFENBEINWEISS | 1 | 51427466784 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com canberra-beige ou canberrabeige Exklusivnaht/Keder ou canberrabeige Exklusivnaht/Keder ou canberra-beige |
CY=Sim DO=Sim EA=Sim FY=Sim |
|||||||||
| 07 | Cobertura esquerda | CANBERRABEIGE | 1 | 51427466781 | NoS | Shop at ECS Tuning | ||||
| 07 | Cobertura direita | CANBERRABEIGE | 1 | 51427466782 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Kit para fumadores |
S441A=Sim |
|||||||||
| 08 | Cinzeiro esq. | SCHWARZ | 1 | 51427466811 | NoS | Shop at ECS Tuning | ||||
| 08 | Cinzeiro dir. | SCHWARZ | 1 | 51427466812 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Kit para fumadores e Pele Dakota/cognac ou Pele Dakota/cognac/costura exclusiva |
S441A=Sim LCRI=Sim LCRO=Sim |
|||||||||
| 08 | Cinzeiro esq. | COGNAC | 1 | 51427489611 | NoS | Shop at ECS Tuning | ||||
| 08 | Cinzeiro dir. | COGNAC | 1 | 51427489612 | Shop at ECS Tuning | |||||
| Para viaturas com Kit para fumadores e Pele Dakota/canberra-beige ou Pele Dakota/canberra bege/costura excl. ou Pele Dakota canberra bege ou Pele Dakota canberrabeige / preto |
S441A=Sim LCCY=Sim LCDO=Sim LCEA=Sim LCFY=Sim |
|||||||||
| 08 | Cinzeiro esq. | CANBERRABEIGE | 1 | 51427466809 | NoS | Shop at ECS Tuning | ||||
| 08 | Cinzeiro dir. | CANBERRABEIGE | 1 | 51427466810 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Kit para fumadores e Pele "Dakota/elfenbein-weiss" ou Pele Dakota/elfenbein-weiss/cost. excl. ou Pele Dakota/elfenbein-weiss/cost. excl. ou Pele Exclusiva nappa/branco marfim ou Pele Exclusiva nappa/branco marfim |
S441A=Sim LCEW=Sim LCFF=Sim LCFI=Sim LZFF=Sim LZFI=Sim |
|||||||||
| 08 | Cinzeiro esq. | ELFENBEINWEISS | 1 | 51427489613 | NoS | Shop at ECS Tuning | ||||
| 08 | Cinzeiro dir. | ELFENBEINWEISS | 1 | 51427489614 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Kit para fumadores |
S441A=Sim |
|||||||||
| 09 | Inserção do cinzeiro | 2 | 51429870518 | NoS | Shop at ECS Tuning | |||||
| 10 | Moldura cinzeiro esquerda | BLACK | 1 | 51429870519 | NoS | Shop at ECS Tuning | ||||
| 10 | Moldura cinzeiro direita | BLACK | 1 | 51429870520 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Kit para fumadores e Pele Dakota/cognac ou Pele Dakota/cognac/costura exclusiva |
S441A=Sim LCRI=Sim LCRO=Sim |
|||||||||
| 10 | Moldura cinzeiro esquerda | COGNAC | 1 | 51429870523 | NoS | Shop at ECS Tuning | ||||
| 10 | Moldura cinzeiro direita | COGNAC | 1 | 51429870524 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Kit para fumadores e Pele Dakota/canberra-beige ou Pele Dakota/canberra bege/costura excl. ou Pele Dakota canberra bege ou Pele Dakota canberrabeige / preto |
S441A=Sim LCCY=Sim LCDO=Sim LCEA=Sim LCFY=Sim |
|||||||||
| 10 | Moldura cinzeiro esquerda | CANBERRABEIGE | 1 | 51429870521 | NoS | Shop at ECS Tuning | ||||
| 10 | Moldura cinzeiro direita | CANBERRABEIGE | 1 | 51429870522 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Kit para fumadores e Pele "Dakota/elfenbein-weiss" ou Pele Dakota/elfenbein-weiss/cost. excl. ou Pele Dakota/elfenbein-weiss/cost. excl. ou Pele Exclusiva nappa/branco marfim ou Pele Exclusiva nappa/branco marfim |
S441A=Sim LCEW=Sim LCFF=Sim LCFI=Sim LZFF=Sim LZFI=Sim |
|||||||||
| 10 | Moldura cinzeiro esquerda | ELFENBEINWEISS | 1 | 51429870525 | NoS | Shop at ECS Tuning | ||||
| 10 | Moldura cinzeiro direita | ELFENBEINWEISS | 1 | 51429870526 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel de madeira nobre "Fineline Ridge" e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LFA=Sim S4URA=Sim S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Guarn.port.mad.Fineline brilh. tras.es. | 1 | 51429460253 | NoS | Shop at ECS Tuning | |||||
| 11 | Guarn.port.mad.Fineline brilh. tras.drt | 1 | 51429460254 | NoS | Shop at ECS Tuning | |||||
| Para viaturas com Made.choupo c/veios cinz.acento pér.crom e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LQA=Sim S4URA=Não S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Friso decor.choupo raiad.porta tras.esq. | GRAU | 1 | 51429460257 | NoS | Shop at ECS Tuning | ||||
| 11 | Friso decor.choupo raiad.porta tras.dir. | GRAU | 1 | 51429460258 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Friso int.alum.romboíde com friso realce e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4K7A=Sim S4URA=Não S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Painel Porta Alumínio tras. esq. | RHOMBICLE | 1 | 51429460291 | NoS | Shop at ECS Tuning | ||||
| 11 | Painel Porta Alumínio tras. dir. | RHOMBICLE | 1 | 51429460292 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com preto alto brilho tom Perlglanz cromado e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LUA=Sim S4URA=Não S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Cobertura decorativa à esquerda | SCHWARZ | 1 | 51429460309 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura decorativa à direita | SCHWARZ | 1 | 51429460310 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Frisos interiores verniz piano preto e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4MLA=Sim S4URA=Sim S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Friso porta verniz piano tras. esquerda | 1 | 51429460281 | NoS | Shop at ECS Tuning | |||||
| 11 | Friso porta verniz piano tras. direita | 1 | 51429460282 | NoS | Shop at ECS Tuning | |||||
| Para viaturas com Friso int.alum.romboíde com friso realce e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4K7A=Sim S4URA=Sim S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Cobertura decorativa alumínio à esquerda | RHOMBICLE | 1 | 51429460295 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura decorativa alumínio à direita | RHOMBICLE | 1 | 51429460296 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel acab.inter.alumínio nobre e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4K9A=Sim S4URA=Sim S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Cobertura decorativa alumínio à esquerda | FEINSCHLIFF | 1 | 51429460287 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura decorativa alumínio à direita | FEINSCHLIFF | 1 | 51429460288 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel mad.nobre raíz nogueira escura e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LGA=Sim S4URA=Não S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Friso porta madeira raiz nogueira esq. | DUNKEL | 1 | 51429460271 | NoS | Shop at ECS Tuning | ||||
| 11 | Friso porta madeira raiz nogueira dir. | DUNKEL | 1 | 51429460272 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel mad.nobre raíz nogueira escura e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LGA=Sim S4URA=Sim S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Friso decor.nogueira porta tras.esquerda | DUNKEL | 1 | 51429460277 | NoS | Shop at ECS Tuning | ||||
| 11 | Friso decor.nogueira porta tras.direita | DUNKEL | 1 | 51429460278 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel de madeira nobre "Fineline Cove" e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LHA=Sim S4URA=Não S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Cobertura esquerda | OFFENPORIG | 1 | 51429460265 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura direita | OFFENPORIG | 1 | 51429460266 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel interior em prata Oxid escuro e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4K8A=Sim S4URA=Sim S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Cobertura decorativa à esquerda | OXIDSILBER | 1 | 51429460303 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura decorativa à direita | OXIDSILBER | 1 | 51429460304 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel acab.inter.alumínio nobre e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4K9A=Sim S4URA=Não S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Cobertura decorativa alumínio à esquerda | FEINSCHLIFF | 1 | 51429460283 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura decorativa alumínio à direita | FEINSCHLIFF | 1 | 51429460284 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel mad.nobre raíz nogueira escura e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LGA=Sim S4URA=Sim S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Friso decor.nogueira porta tras.esquerda | DUNKEL | 1 | 51429460275 | NoS | Shop at ECS Tuning | ||||
| 11 | Friso decor.nogueira porta tras.direita | DUNKEL | 1 | 51429460276 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel acab.inter.alumínio nobre e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4K9A=Sim S4URA=Sim S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Cobertura decorativa alumínio à esquerda | FEINSCHLIFF | 1 | 51429460289 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura decorativa alumínio à direita | FEINSCHLIFF | 1 | 51429460290 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel de madeira nobre "Fineline Ridge" e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LFA=Sim S4URA=Não S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Guarn.port.mad.Fineline brilh. tras.es. | 1 | 51429460249 | NoS | Shop at ECS Tuning | |||||
| 11 | Guarn.port.mad.Fineline brilh. tras.drt | 1 | 51429460250 | NoS | Shop at ECS Tuning | |||||
| Para viaturas com Frisos interiores verniz piano preto e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4MLA=Sim S4URA=Sim S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Friso porta verniz piano tras. esquerda | 1 | 51429460279 | NoS | Shop at ECS Tuning | |||||
| 11 | Friso porta verniz piano tras. direita | 1 | 51429460280 | NoS | Shop at ECS Tuning | |||||
| Para viaturas com Painel interior em prata Oxid escuro e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4K8A=Sim S4URA=Sim S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Cobertura decorativa à esquerda | OXIDSILBER | 1 | 51429460305 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura decorativa à direita | OXIDSILBER | 1 | 51429460306 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com preto alto brilho tom Perlglanz cromado e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LUA=Sim S4URA=Sim S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Cobertura decorativa à esquerda | SCHWARZ | 1 | 51429460313 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura decorativa à direita | SCHWARZ | 1 | 51429460314 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel acab.inter.alumínio nobre e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4K9A=Sim S4URA=Não S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Cobertura decorativa alumínio à esquerda | FEINSCHLIFF | 1 | 51429460285 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura decorativa alumínio à direita | FEINSCHLIFF | 1 | 51429460286 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Made.choupo c/veios cinz.acento pér.crom e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LQA=Sim S4URA=Sim S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Guarn. porta madeira choupo tras. esq. | GRAU | 1 | 51429460261 | NoS | Shop at ECS Tuning | ||||
| 11 | Guarn. porta madeira choupo tras. dir. | GRAU | 1 | 51429460262 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Made.choupo c/veios cinz.acento pér.crom e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LQA=Sim S4URA=Sim S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Friso decor.choupo raiad.porta tras.esq. | GRAU | 1 | 51429460259 | NoS | Shop at ECS Tuning | ||||
| 11 | Friso decor.choupo raiad.porta tras.dir. | GRAU | 1 | 51429460260 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel interior em prata Oxid escuro e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4K8A=Sim S4URA=Não S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Cobertura decorativa à esquerda | OXIDSILBER | 1 | 51429460299 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura decorativa à direita | OXIDSILBER | 1 | 51429460300 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel de madeira nobre "Fineline Ridge" e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LFA=Sim S4URA=Não S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Friso porta madeira fineline esq. | 1 | 51429460247 | NoS | Shop at ECS Tuning | |||||
| 11 | Friso porta madeira fineline dir. | 1 | 51429460248 | NoS | Shop at ECS Tuning | |||||
| Para viaturas com preto alto brilho tom Perlglanz cromado e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LUA=Sim S4URA=Não S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Cobertura decorativa à esquerda | SCHWARZ | 1 | 51429460307 | Shop at ECS Tuning | |||||
| 11 | Cobertura decorativa à direita | SCHWARZ | 1 | 51429460308 | Shop at ECS Tuning | |||||
| Para viaturas com Friso int.alum.romboíde com friso realce e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4K7A=Sim S4URA=Sim S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Cobertura decorativa alumínio à esquerda | RHOMBICLE | 1 | 51429460297 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura decorativa alumínio à direita | RHOMBICLE | 1 | 51429460298 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel de madeira nobre "Fineline Ridge" e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LFA=Sim S4URA=Sim S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Painel porta mad. Fineline tras. esq. | 1 | 51429460251 | NoS | Shop at ECS Tuning | |||||
| 11 | Painel porta mad. Fineline tras. dir. | 1 | 51429460252 | NoS | Shop at ECS Tuning | |||||
| Para viaturas com Painel de madeira nobre "Fineline Cove" e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LHA=Sim S4URA=Sim S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Cobertura esquerda | OFFENPORIG | 1 | 51429460267 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura direita | OFFENPORIG | 1 | 51429460268 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com preto alto brilho tom Perlglanz cromado e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LUA=Sim S4URA=Sim S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Cobertura decorativa à esquerda | SCHWARZ | 1 | 51429460311 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura decorativa à direita | SCHWARZ | 1 | 51429460312 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel de madeira nobre "Fineline Cove" e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LHA=Sim S4URA=Sim S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Guarnição porta esquerda | OFFENPORIG | 1 | 51429460269 | NoS | Shop at ECS Tuning | ||||
| 11 | Guarnição porta direita | OFFENPORIG | 1 | 51429460270 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Friso int.alum.romboíde com friso realce e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4K7A=Sim S4URA=Não S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Cobertura decorativa alumínio à esquerda | RHOMBICLE | 1 | 51429460293 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura decorativa alumínio à direita | RHOMBICLE | 1 | 51429460294 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel interior em prata Oxid escuro e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4K8A=Sim S4URA=Não S676A=Sim S688A=Sim S6F1A=Sim |
|||||||||
| 11 | Cobertura decorativa à esquerda | OXIDSILBER | 1 | 51429460301 | NoS | Shop at ECS Tuning | ||||
| 11 | Cobertura decorativa à direita | OXIDSILBER | 1 | 51429460302 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Painel de madeira nobre "Fineline Cove" e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LHA=Sim S4URA=Não S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Guarnição porta esquerda | OFFENPORIG | 1 | 51429460263 | NoS | Shop at ECS Tuning | ||||
| 11 | Guarnição porta direita | OFFENPORIG | 1 | 51429460264 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Made.choupo c/veios cinz.acento pér.crom e Luz ambiente e Sistema de altifalantes HiFi e Sistema som Surround Harman/Kardon e Bowers & Wilkins High End Sound System |
S4LQA=Sim S4URA=Não S676A=Não S688A=Não S6F1A=Não |
|||||||||
| 11 | Friso decor.choupo raiad.porta tras.esq. | GRAU | 1 | 51429460255 | NoS | Shop at ECS Tuning | ||||
| 11 | Friso decor.choupo raiad.porta tras.dir. | GRAU | 1 | 51429460256 | NoS | Shop at ECS Tuning | ||||
| 12 | Grampo | 1,8MM | 10 | 51417022046 | $0.85 | Shop at ECS Tuning | ||||
| Para viaturas com Cortina protectora sol tras./ lateral |
S416A=Sim |
|||||||||
| 12 | Grampo | SSR | 10 | 07147489151 | Shop at ECS Tuning | |||||
| 13 | Parafuso Torx para material plástico | ISA L=25MM | 4 | 07147549513 | $0.29 | Shop at ECS Tuning | ||||
Notas
- NoS = No Stock (Peça não armazenada centralmente.)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series G32 GT 630dX Peças de montagem quartela porta tras.?
- This technical diagram illustrates the Peças de montagem quartela porta tras. within the Equipamento da carroçaria group for the 6 Series G32 GT 630dX. It provides a detailed exploded view of the components, identifying key parts such as the Apoio de braço traseiro esquerdo (Part #51427466761).
- Which models use the hardware listed in this Peças de montagem quartela porta tras.?
- The hardware and components featured in the Peças de montagem quartela porta tras. are specific to the 6 Series G32 GT 630dX. These technical specifications ensure that parts like the Apoio de braço traseiro esquerdo (51427466761) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Peças de montagem quartela porta tras. assembly?
- Each item in the Peças de montagem quartela porta tras. corresponds to the numbered list below the illustration. For the 6 Series G32 GT 630dX, you can identify the Apoio de braço traseiro esquerdo by locating its position on the schematic, which then links to the official BMW part number 51427466761 for the Equipamento da carroçaria section.
