Cortina da porta traseira for BMW 6 Series G32 GT 630dX

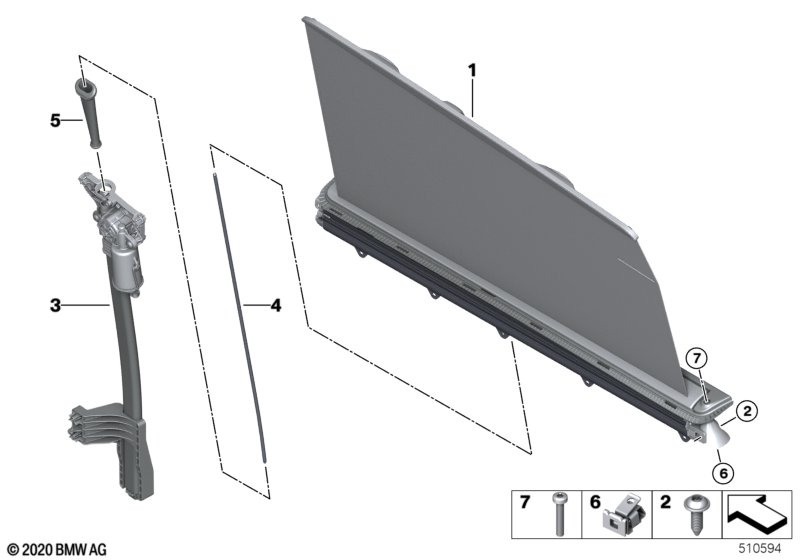

This Cortina da porta traseira technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630dX. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Para viaturas com Cortina protectora sol tras./ lateral |
S416A=Sim |
||||||||
| 01 | Cortina protectora do sol esquerda | 1 | 51357418859 | Shop at ECS Tuning | ||||||
| 01 | Cortina protectora do sol direita | 1 | 51357418860 | Shop at ECS Tuning | ||||||
| 02 | Parafuso de cabeça oval | ISA 4X14MM | 5 | 51167072159 | $0.33 | Shop at ECS Tuning | ||||
| 03 | Motor Cortina protetora do sol esquerda | 1 | 51357443107 | Shop at ECS Tuning | ||||||
| 03 | Motor Cortina protetora do sol direita | 1 | 51357443108 | Shop at ECS Tuning | ||||||
| 04 | Barra de impulsão | 2 | 51477471882 | Shop at ECS Tuning | ||||||
| 05 | Casquilho de guia | 2 | 51477471881 | Shop at ECS Tuning | ||||||
| 06 | Grampo | 1,2MM | 2 | 51417471626 | Shop at ECS Tuning | |||||
| 07 | Parafuso | 4,2X32MM | 2 | 07119907453 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series G32 GT 630dX Cortina da porta traseira?
- This technical diagram illustrates the Cortina da porta traseira within the Equipamento da carroçaria group for the 6 Series G32 GT 630dX. It provides a detailed exploded view of the components, identifying key parts such as the Cortina protectora do sol esquerda (Part #51357418859).
- Which models use the hardware listed in this Cortina da porta traseira?
- The hardware and components featured in the Cortina da porta traseira are specific to the 6 Series G32 GT 630dX. These technical specifications ensure that parts like the Cortina protectora do sol esquerda (51357418859) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cortina da porta traseira assembly?
- Each item in the Cortina da porta traseira corresponds to the numbered list below the illustration. For the 6 Series G32 GT 630dX, you can identify the Cortina protectora do sol esquerda by locating its position on the schematic, which then links to the official BMW part number 51357418859 for the Equipamento da carroçaria section.
