Protecção aresta/guarnição embaladeira for BMW 5 Series F18 LCI 535Li (2012)

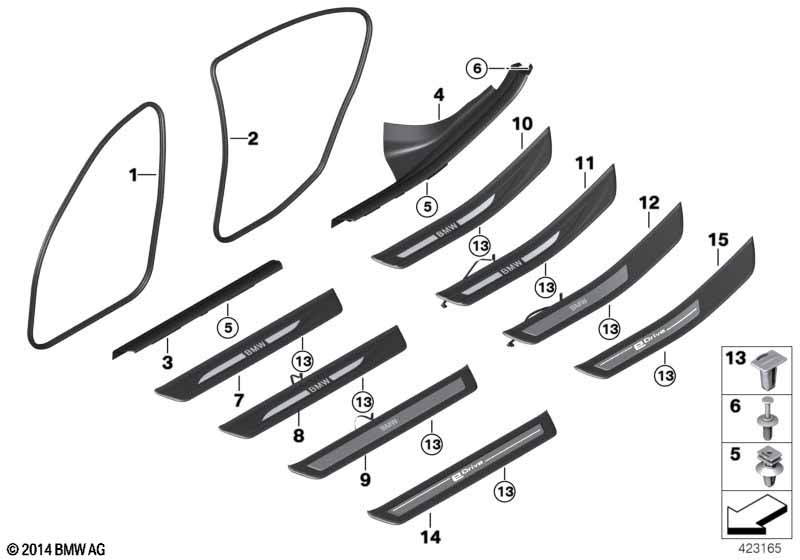

This Protecção aresta/guarnição embaladeira technical drawing provides a detailed breakdown of the assembly for the 5 Series F18 LCI 535Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Protecção dos cantos da porta dianteira | 2 | 51727278503 | Shop at ECS Tuning | ||||||
| 02 | Protecção dos cantos da porta traseira | 2 | 51727278506 | Shop at ECS Tuning | ||||||
| Para viaturas com Veneto-beige ou veneto bege costura exclusiva |
DF=Sim LY=Sim |
|||||||||
| 03 | Friso cobertura embal. int. diant. | VENETOBEIGE | 1 | 51477358067 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com costura exclusiva elfenbein-wei./oyster ou costura exclusiva elfenbein-wei./oyster ou costura exclusiva oyster ou costura exclusiva oyster |
EO=Sim EU=Sim OT=Sim OU=Sim |
|||||||||
| 03 | Friso cobertura embal. int. diant. | OYSTER | 1 | 51477358065 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com costura exclusiva elfenbein-wei./oyster ou zimt-braun ou costura exclusiva preto ou mokka ou costura exclusiva oyster ou costura exclusiva preto ou preto |
ET=Sim EZ=Sim LZ=Sim MW=Sim OX=Sim SJ=Sim SW=Sim |
|||||||||
| 03 | Friso cobertura embal. int. diant. | SCHWARZ | 1 | 51477358066 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Veneto-beige ou veneto bege costura exclusiva |
DF=Sim LY=Sim |
|||||||||
| 04 | Régua de vedação embal. int. tras. esq. | VENETOBEIGE | 1 | 51477358061 | NoS | Shop at ECS Tuning | ||||
| 04 | Friso soleira porta interior tras.dir. | VENETOBEIGE | 1 | 51477358062 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com costura exclusiva elfenbein-wei./oyster ou costura exclusiva elfenbein-wei./oyster ou costura exclusiva oyster ou costura exclusiva oyster |
EO=Sim EU=Sim OT=Sim OU=Sim |
|||||||||
| 04 | Régua de vedação embal. int. tras. esq. | OYSTER | 1 | 51477358057 | NoS | Shop at ECS Tuning | ||||
| 04 | Friso soleira porta interior tras.dir. | OYSTER | 1 | 51477358058 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com costura exclusiva elfenbein-wei./oyster ou zimt-braun ou costura exclusiva preto ou mokka ou costura exclusiva oyster ou costura exclusiva preto ou preto |
ET=Sim EZ=Sim LZ=Sim MW=Sim OX=Sim SJ=Sim SW=Sim |
|||||||||
| 04 | Régua de vedação embal. int. tras. esq. | SCHWARZ | 1 | 51477358059 | NoS | Shop at ECS Tuning | ||||
| 04 | Friso soleira porta interior tras.dir. | SCHWARZ | 1 | 51477358060 | NoS | Shop at ECS Tuning | ||||
| 05 | Clipe cinzento | 18 | 51478262533 | $0.74 | Shop at ECS Tuning | |||||
| 06 | Rebite de expansão | D = 6MM | 2 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| Para viaturas com Modern Line e Luxury Line e Luz ambiente |
P7S1A=Não P7S2A=Não S4URA=Não |
|||||||||
| 07 | Protecção da soleira dianteira esquerda | BMW | 1 | 51477203601 | Shop at ECS Tuning | |||||
| 07 | Protecção da soleira dianteira direita | BMW | 1 | 51477203602 | Shop at ECS Tuning | |||||
| Para viaturas com Modern Line e Luxury Line e Luz ambiente |
P7S1A=Não P7S2A=Não S4URA=Sim |
|||||||||
| 08 | Friso embaladeira iluminada frente esq. | BMW | 1 | 51477203607 | Shop at ECS Tuning | |||||
| 08 | Friso embaladeira iluminada frente dir. | BMW | 1 | 51477203608 | Shop at ECS Tuning | |||||
| Para viaturas com Modern Line ou Luxury Line |
P7S1A=Sim P7S2A=Sim |
|||||||||
| 09 | Friso embaladeira iluminada frente esq. | BMW | 1 | 51477337017 | Shop at ECS Tuning | |||||
| 09 | Friso embaladeira iluminada frente dir. | BMW | 1 | 51477337018 | Shop at ECS Tuning | |||||
| Para viaturas com Modern Line e Luxury Line e Luz ambiente |
P7S1A=Não P7S2A=Não S4URA=Não |
|||||||||
| 10 | Protecção da soleira traseira esquerda | BMW | 1 | 51477203605 | Shop at ECS Tuning | |||||
| 10 | Protecção da soleira traseira direita | BMW | 1 | 51477203606 | Shop at ECS Tuning | |||||
| Para viaturas com Modern Line e Luxury Line e Luz ambiente |
P7S1A=Não P7S2A=Não S4URA=Sim |
|||||||||
| 11 | Friso embaladeira iluminada atrás esq. | BMW | 1 | 51477203611 | Shop at ECS Tuning | |||||
| 11 | Friso embaladeira iluminada atrás dir. | BMW | 1 | 51477203612 | Shop at ECS Tuning | |||||
| Para viaturas com Modern Line ou Luxury Line |
P7S1A=Sim P7S2A=Sim |
|||||||||
| 12 | Friso embaladeira iluminada atrás esq. | BMW | 1 | 51477341547 | Shop at ECS Tuning | |||||
| 12 | Friso embaladeira iluminada atrás dir. | BMW | 1 | 51477341548 | Shop at ECS Tuning | |||||
| 13 | Clipe cor natural | L=13,2MM | 16 | 51471840960 | $0.24 | Shop at ECS Tuning | ||||
Notas
- NoS = No Stock (Peça não armazenada centralmente.)
