Revestimento lateral da zona dos pés for BMW 5 Series F10 LCI 520i (2016)

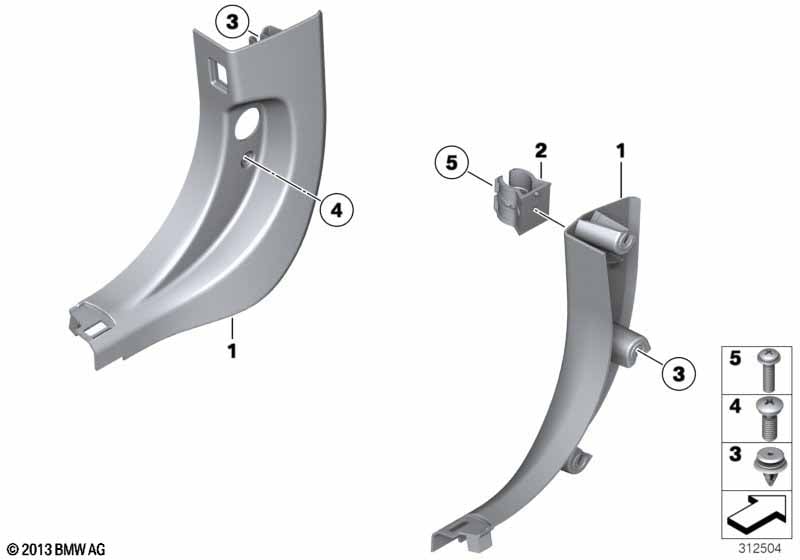

This Revestimento lateral da zona dos pés technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para viaturas com Veneto-beige ou veneto bege costura exclusiva |
DF=Sim LY=Sim |
|||||||||
| 01 | Revest. lateral inf. diant.esq. | VENETOBEIGE | 1 | 51437230115 | Shop at ECS Tuning | |||||
| 01 | Revest. lateral inf. diant.drt. | VENETOBEIGE | 1 | 51437230116 | Shop at ECS Tuning | |||||
| Para viaturas com costura exclusiva elfenbein-wei./oyster ou costura exclusiva elfenbein-wei./oyster ou costura exclusiva oyster ou costura exclusiva oyster |
EO=Sim EU=Sim OT=Sim OU=Sim |
|||||||||
| 01 | Revest. lateral inf. diant.esq. | OYSTER | 1 | 51437230119 | Shop at ECS Tuning | |||||
| 01 | Revest. lateral inf. diant.drt. | OYSTER | 1 | 51437230120 | Shop at ECS Tuning | |||||
| Para viaturas com Antracite ou costura exclusiva elfenbein-wei./oyster ou zimt-braun ou Antracite ou costura exclusiva preto ou mokka ou costura exclusiva oyster ou costura exclusiva preto ou preto |
AT=Sim ET=Sim EZ=Sim IZ=Sim LZ=Sim MW=Sim OX=Sim SJ=Sim SW=Sim |
|||||||||
| 01 | Revest. lateral inf. diant.esq. | SCHWARZ | 1 | 51439176661 | Shop at ECS Tuning | |||||
| 01 | Revest. lateral inf. diant.drt. | SCHWARZ | 1 | 51439176662 | Shop at ECS Tuning | |||||
| Para viaturas com Versão para o Japão |
L807A=Sim |
|||||||||
| 02 | Suporte da lanterna de sinalização | 1 | 51437044418 | $2.23 | Shop at ECS Tuning | |||||
| 03 | Clip | 5 | 07147152593 | $0.17 | Shop at ECS Tuning | |||||
| 04 | Parafuso Phillips para plástico | TS 5X13 | 1 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| Para viaturas com Versão para o Japão |
L807A=Sim |
|||||||||
| 05 | Parafuso de chapa | ST4,8X19MM | 1 | 07119904350 | Shop at ECS Tuning | |||||
