Revest. chão bagageira for BMW 5 Series F18 LCI 535Li (2012)

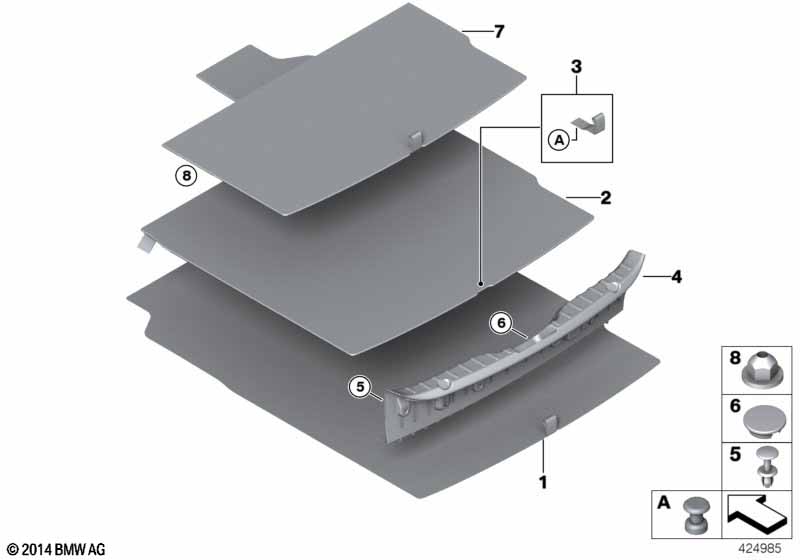

This Revest. chão bagageira technical drawing provides a detailed breakdown of the assembly for the 5 Series F18 LCI 535Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Chão encastrável da bagageira | 1 | 51477222131 | Shop at ECS Tuning | ||||||
| Para viaturas com Versão para a China e Caixa frigorífica |
L8AAA=Não S791A=Sim |
|||||||||
| 02 | Chão encastrável da bagageira | 1 | 51478049405 | Shop at ECS Tuning | ||||||
| Para viaturas com Versão para a China e Caixa frigorífica |
L8AAA=Sim S791A=Sim |
|||||||||
| 02 | Chão encastrável da bagageira | 1 | 51472452353 | Shop at ECS Tuning | ||||||
| 03 | Kit de reparação Laço em pele | 1 | 51477295784 | +core | Shop at ECS Tuning | |||||
| 04 | Guarnição do bordo de acesso de carga | 1 | 51479163190 | Shop at ECS Tuning | ||||||
| 05 | Rebite de expansão | SCHWARZ | 4 | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| 06 | Tampa de fecho | SCHWARZ | 1 | 51477018913 | $0.90 | Shop at ECS Tuning | ||||
Notas
- +core = plus core charge (possibilidade de devolver a peça antiga)
