Blindagem do compartimento do motor for BMW 5 Series F10 LCI 520i (2016)

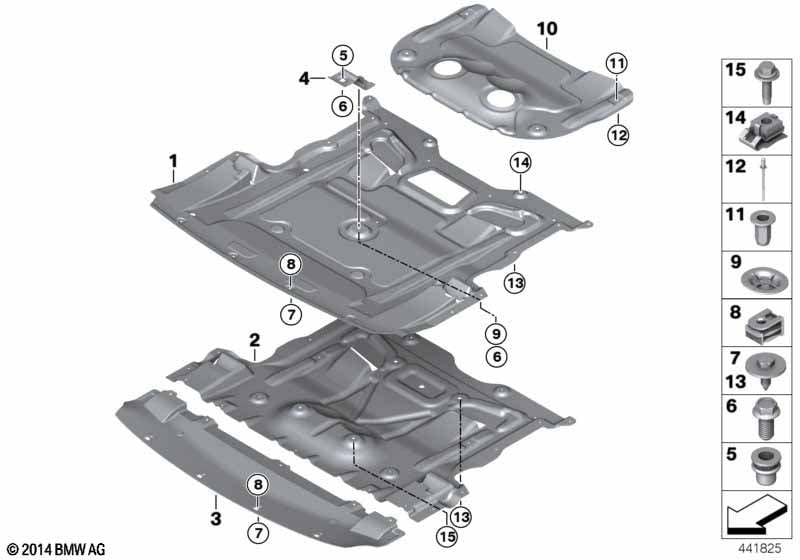

This Blindagem do compartimento do motor technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para viaturas com Conjunto aerodinâmico M Technic e Protecção inferior variantes nacionais |
S715A=Não S8SDA=Sim |
|||||||||
| 01 | Blindagem compartim.motor protecção inf. | 1 | 51757267536 | Shop at ECS Tuning | ||||||
| Para viaturas com Conjunto aerodinâmico M Technic e Protecção inferior variantes nacionais |
S715A=Não S8SDA=Não |
|||||||||
| 01 | Blindagem compartim.motor protecção inf. | 1 | 51757185113 | $191.03 | Shop at ECS Tuning | |||||
| Para viaturas com Conjunto aerodinâmico M Technic e Protecção inferior variantes nacionais |
S715A=Sim S8SDA=Não |
|||||||||
| 02 | Blindagem compartimento motor M diant. | 1 | 51758035971 | Shop at ECS Tuning | ||||||
| Para viaturas com Conjunto aerodinâmico M Technic e Protecção inferior variantes nacionais |
S715A=Sim S8SDA=Sim |
|||||||||
| 02 | Blindagem compart.motor M protecção inf. | 1 | 51758050702 | NoS | Shop at ECS Tuning | |||||
| Para viaturas com Conjunto aerodinâmico M Technic |
S715A=Sim |
|||||||||
| 03 | Adaptador blindagem compartim. motor M | 1 | 51757905276 | Shop at ECS Tuning | ||||||
| Para viaturas com Protecção inferior variantes nacionais |
S8SDA=Não |
|||||||||
| 04 | Patilha | 1 | 51757188405 | Shop at ECS Tuning | ||||||
| 05 | Porca de rebite cega de cabeça chata | M8 | 1 | 41327000571 | $1.75 | Shop at ECS Tuning | ||||
| 06 | Parafuso de fixação | TENSILOCK | 1 | 07149160466 | Shop at ECS Tuning | |||||
| 07 | Parafuso sextavado | TS5X20 SW8 D=22 | X | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Parafuso sextavado | TS5X20SW10 D=22 | X | 04/2017 | 07149481168 | Shop at ECS Tuning | ||||
| 07 | Parafuso sextavado | TS5X20SW10 D=22 | X | 07142644722 | ENDED | Shop at ECS Tuning | ||||
| 08 | Porca C-Clip em plástico | TS5 | X | 07147311312 | Shop at ECS Tuning | |||||
| Para viaturas com Conjunto aerodinâmico M Technic e Protecção inferior variantes nacionais |
S715A=Sim S8SDA=Não |
|||||||||
| 09 | Fixação | ALPINA | 1 | 51757980139 | Shop at ECS Tuning | |||||
| Para viaturas com Protecção inferior variantes nacionais |
S8SDA=Sim |
|||||||||
| 11 | Porca de rebite cega de cabeça chata | M8 DMAX=20MM | 2 | 07147284477 | Shop at ECS Tuning | |||||
| 13 | Parafuso sextavado combinado | M10X35 | 2 | 07147284584 | Shop at ECS Tuning | |||||
| 14 | Porca de encaixe | M10-10 ZNS3 | 2 | 07147283812 | Shop at ECS Tuning | |||||
Notas
- NoS = No Stock (Peça não armazenada centralmente.)
- ENDED = a peça foi descontinuada
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F10 LCI 520i Blindagem do compartimento do motor?
- This technical diagram illustrates the Blindagem do compartimento do motor within the Equipamento da carroçaria group for the 5 Series F10 LCI 520i produced during 2016. It provides a detailed exploded view of the components, identifying key parts such as the Blindagem compartim.motor protecção inf. (Part #51757267536).
- Which models use the hardware listed in this Blindagem do compartimento do motor?
- The hardware and components featured in the Blindagem do compartimento do motor are specific to the 5 Series F10 LCI 520i produced during 2016. These technical specifications ensure that parts like the Blindagem compartim.motor protecção inf. (51757267536) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Blindagem do compartimento do motor assembly?
- Each item in the Blindagem do compartimento do motor corresponds to the numbered list below the illustration. For the 5 Series F10 LCI 520i, you can identify the Blindagem compartim.motor protecção inf. by locating its position on the schematic, which then links to the official BMW part number 51757267536 for the Equipamento da carroçaria section.
