Vidros for BMW 4 Series G26 Gran Coupé LCI 430i

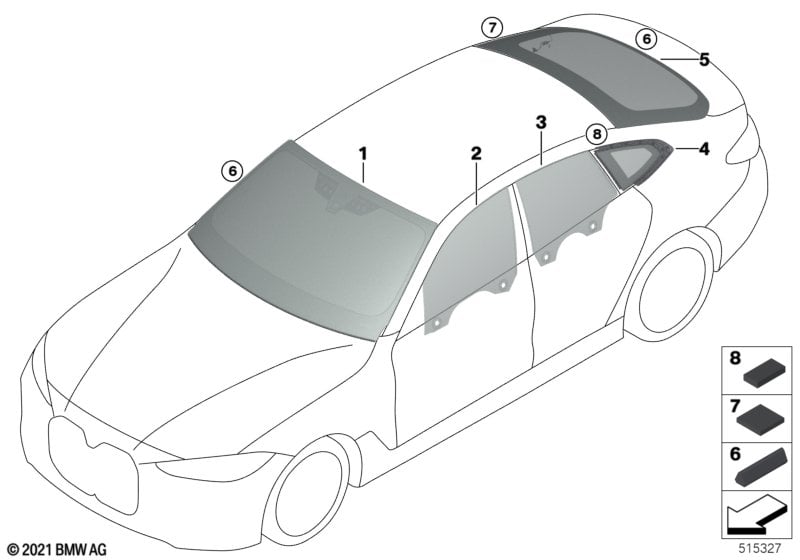

This Vidros technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé LCI 430i. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para viaturas com Assistente de condução Professional e BMW Live Cockpit Professional |
S5AUA=Sim S6U3A=Não |
|||||||||
| 01 | Pára-brisas verde chuva/luz/embaciamento | KAFAS | 1 | 51317933082 | Shop at ECS Tuning | |||||
| Necessário para a reparação | ||||||||||
| -- | Amortecedor | 2 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Resguardo do pára-brisas, em cima | 1 | 51317933086 | Shop at ECS Tuning | ||||||
| Para viaturas com Assistente de condução Professional e BMW Live Cockpit Professional |
S5AUA=Sim S6U3A=Sim |
|||||||||
| 01 | Pára-brisas verde chuva/luz/embaciamento | KAFAS/HUD | 1 | 51317933085 | Shop at ECS Tuning | |||||
| Necessário para a reparação | ||||||||||
| -- | Amortecedor | 2 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Resguardo do pára-brisas, em cima | 1 | 51317933086 | Shop at ECS Tuning | ||||||
| Para viaturas com Farol de LEDs adaptativo e Active Guard Plus e Driving Assistant e Assistente de condução Professional e Active Guard e Regul.activ. velocidade+função Stop&Go e BMW Live Cockpit Professional |
S552A=Sim S5AQA=Sim S5ASA=Sim S5AUA=Não S5AVA=Sim S5DFA=Sim S6U3A=Não |
|||||||||
| 01 | Pára-brisas verde chuva/luz/embaciamento | 1 | 51317933081 | Shop at ECS Tuning | ||||||
| Necessário para a reparação | ||||||||||
| -- | Amortecedor | 2 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Resguardo do pára-brisas, em cima | 1 | 51317933086 | Shop at ECS Tuning | ||||||
| Para viaturas com Farol de LEDs adaptativo e Active Guard Plus e Driving Assistant e Assistente de condução Professional e Active Guard e Regul.activ. velocidade+função Stop&Go e BMW Live Cockpit Professional |
S552A=Sim S5AQA=Sim S5ASA=Sim S5AUA=Não S5AVA=Sim S5DFA=Sim S6U3A=Sim |
|||||||||
| 01 | Pára-brisas verde chuva/luz/embaciamento | KAFAS/HUD | 1 | 51317933084 | Shop at ECS Tuning | |||||
| Necessário para a reparação | ||||||||||
| -- | Amortecedor | 2 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Resguardo do pára-brisas, em cima | 1 | 51317933086 | Shop at ECS Tuning | ||||||
| Para viaturas com Farol de LEDs adaptativo e Active Guard Plus e Driving Assistant e Assistente de condução Professional e Active Guard e Regul.activ. velocidade+função Stop&Go e BMW Live Cockpit Professional |
S552A=Não S5AQA=Não S5ASA=Não S5AUA=Não S5AVA=Não S5DFA=Não S6U3A=Não |
|||||||||
| 01 | Pára-brisas verde chuva/luz/embaciamento | 1 | 51317933080 | Shop at ECS Tuning | ||||||
| Necessário para a reparação | ||||||||||
| -- | Amortecedor | 2 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Resguardo do pára-brisas, em cima | 1 | 51317933086 | Shop at ECS Tuning | ||||||
| Para viaturas com Farol de LEDs adaptativo e Active Guard Plus e Driving Assistant e Assistente de condução Professional e Active Guard e Regul.activ. velocidade+função Stop&Go e BMW Live Cockpit Professional |
S552A=Não S5AQA=Não S5ASA=Não S5AUA=Não S5AVA=Não S5DFA=Não S6U3A=Sim |
|||||||||
| 01 | Pára-brisas verde chuva/luz/embaciamento | HUD | 1 | 51317933083 | Shop at ECS Tuning | |||||
| Necessário para a reparação | ||||||||||
| -- | Amortecedor | 2 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Resguardo do pára-brisas, em cima | 1 | 51317933086 | Shop at ECS Tuning | ||||||
| 02 | Vidro lateral porta dianteira esquerda | 1 | 51337955247 | Shop at ECS Tuning | ||||||
| 02 | Vidro lateral porta dianteira direita | 1 | 51337955248 | Shop at ECS Tuning | ||||||
| Para viaturas com Vidro protector do sol |
S420A=Sim |
|||||||||
| 03 | Vidro lateral, porta traseira esquerda | SSG | 1 | 51357955239 | Shop at ECS Tuning | |||||
| 03 | Vidro lateral, porta traseira direita | SSG | 1 | 51357955240 | Shop at ECS Tuning | |||||
| Para viaturas com Vidro protector do sol |
S420A=Não |
|||||||||
| 03 | Vidro lateral, porta traseira esquerda | 1 | 51357955235 | Shop at ECS Tuning | ||||||
| 03 | Vidro lateral, porta traseira direita | 1 | 51357955236 | Shop at ECS Tuning | ||||||
| Para viaturas com Vidro protector do sol |
S420A=Sim |
|||||||||
| 04 | Vidro lateral fixo traseiro esquerdo | SSG | 1 | 51377482995 | Shop at ECS Tuning | |||||
| 04 | Vidro lateral fixo traseiro direito | SSG | 1 | 51377482996 | Shop at ECS Tuning | |||||
| Para viaturas com Vidro protector do sol |
S420A=Não |
|||||||||
| 04 | Vidro lateral fixo traseiro esquerdo | 1 | 51377482993 | Shop at ECS Tuning | ||||||
| 04 | Vidro lateral fixo traseiro direito | 1 | 51377482994 | Shop at ECS Tuning | ||||||
| Para viaturas com Vidro protector do sol |
S420A=Sim |
|||||||||
| 05 | Óculo traseiro verde com antena | SSG | 1 | 51317487596 | Shop at ECS Tuning | |||||
| Para viaturas com Vidro protector do sol |
S420A=Não |
|||||||||
| 05 | Óculo traseiro verde com antena | 1 | 51317487595 | Shop at ECS Tuning | ||||||
| 06 | Amortecedor | 13 | 51317288462 | Shop at ECS Tuning | ||||||
| 07 | Fita de velcro | 20 X 20 | 4 | 07147217319 | Shop at ECS Tuning | |||||
| 08 | Fita de velcro | 10 X 20 | 2 | 51318269160 | $0.63 | Shop at ECS Tuning | ||||
