Mecanismo do vidro da porta dianteira for BMW 4 Series G26 Gran Coupé LCI 430i

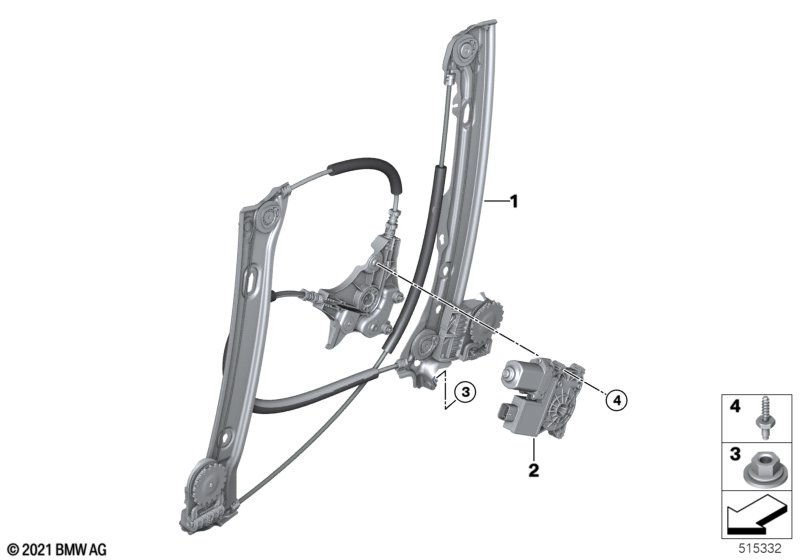

This Mecanismo do vidro da porta dianteira technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé LCI 430i. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Levanta-vidro s/motor diant.esq. | 1 | 51355A41AD1 | Shop at ECS Tuning | ||||||
| 01 | Levanta-vidro s/motor diant.drt. | 1 | 51355A41AD2 | Shop at ECS Tuning | ||||||
| 02 | Acionamento Vidro elétrico diant.esq. | 1 | 61359854229 | Shop at ECS Tuning | ||||||
| 02 | Acionamento Vidro elétrico diant.dir. | 1 | 61359854230 | Shop at ECS Tuning | ||||||
| 03 | Porca sextavada | BM6-8-ZNS3 | 12 | 07129904870 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Pernos roscados duplos | 3 | 07144876389 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G26 Gran Coupé LCI 430i Mecanismo do vidro da porta dianteira?
- This technical diagram illustrates the Mecanismo do vidro da porta dianteira within the Equipamento da carroçaria group for the 4 Series G26 Gran Coupé LCI 430i. It provides a detailed exploded view of the components, identifying key parts such as the Levanta-vidro s/motor diant.esq. (Part #51355A41AD1).
- Which models use the hardware listed in this Mecanismo do vidro da porta dianteira?
- The hardware and components featured in the Mecanismo do vidro da porta dianteira are specific to the 4 Series G26 Gran Coupé LCI 430i. These technical specifications ensure that parts like the Levanta-vidro s/motor diant.esq. (51355A41AD1) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mecanismo do vidro da porta dianteira assembly?
- Each item in the Mecanismo do vidro da porta dianteira corresponds to the numbered list below the illustration. For the 4 Series G26 Gran Coupé LCI 430i, you can identify the Levanta-vidro s/motor diant.esq. by locating its position on the schematic, which then links to the official BMW part number 51355A41AD1 for the Equipamento da carroçaria section.
