Mecanismo do vidro da porta traseira for BMW 4 Series G26 Gran Coupé LCI 430i

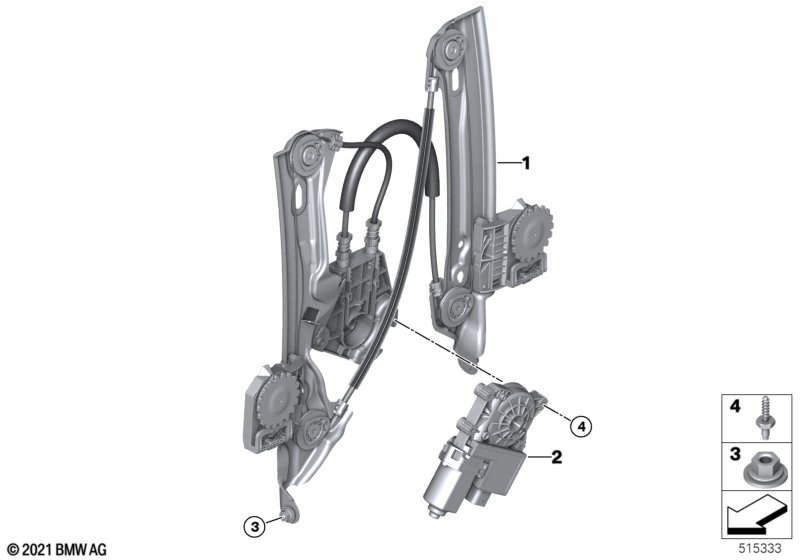

This Mecanismo do vidro da porta traseira technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé LCI 430i. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Levanta-vidro s/motor tras.esq. | 1 | 51335A41AC7 | Shop at ECS Tuning | ||||||
| 01 | Levanta-vidro s/motor tras.drt. | 1 | 51335A41AC8 | Shop at ECS Tuning | ||||||
| 02 | Accionamento levanta-vidro tras.esq. | 1 | 61359854231 | Shop at ECS Tuning | ||||||
| 02 | Accionamento levanta-vidro tras.drt. | 1 | 61359854232 | Shop at ECS Tuning | ||||||
| 03 | Porca sextavada | BM6-8-ZNS3 | 10 | 07129904870 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Pernos roscados duplos | 3 | 07144876389 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G26 Gran Coupé LCI 430i Mecanismo do vidro da porta traseira?
- This technical diagram illustrates the Mecanismo do vidro da porta traseira within the Equipamento da carroçaria group for the 4 Series G26 Gran Coupé LCI 430i. It provides a detailed exploded view of the components, identifying key parts such as the Levanta-vidro s/motor tras.esq. (Part #51335A41AC7).
- Which models use the hardware listed in this Mecanismo do vidro da porta traseira?
- The hardware and components featured in the Mecanismo do vidro da porta traseira are specific to the 4 Series G26 Gran Coupé LCI 430i. These technical specifications ensure that parts like the Levanta-vidro s/motor tras.esq. (51335A41AC7) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mecanismo do vidro da porta traseira assembly?
- Each item in the Mecanismo do vidro da porta traseira corresponds to the numbered list below the illustration. For the 4 Series G26 Gran Coupé LCI 430i, you can identify the Levanta-vidro s/motor tras.esq. by locating its position on the schematic, which then links to the official BMW part number 51335A41AC7 for the Equipamento da carroçaria section.
