Estrutura do assento do banco dianteiro for BMW MINI R56 One (2008)

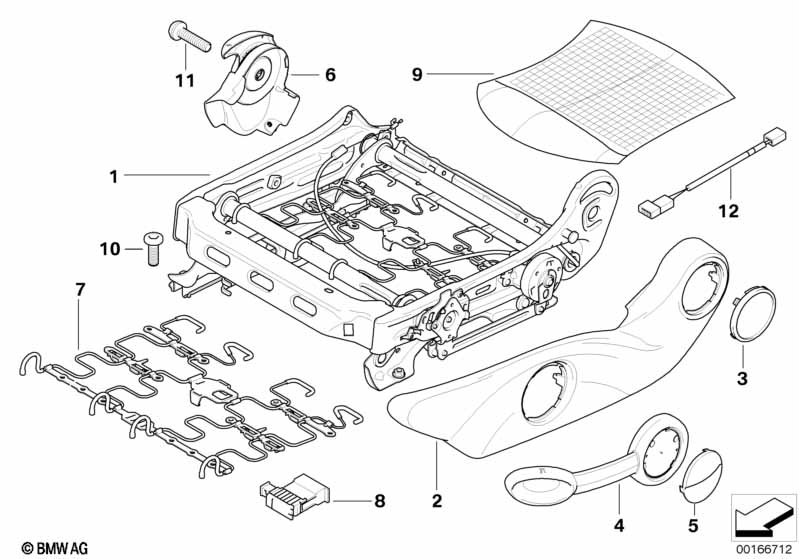

This Estrutura do assento do banco dianteiro technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Lado do condutor | ||||||||||
| 01 | Mecanismo do banco esquerdo | 1 | 52107335409 | Shop at ECS Tuning | ||||||
| apenas em combinação com | ||||||||||
| -- | Parafuso de cabeça oval | M8X40 | 1 | 07147341897 | Shop at ECS Tuning | |||||
| 01 | Mecanismo do banco direito | 1 | 52107335410 | Shop at ECS Tuning | ||||||
| apenas em combinação com | ||||||||||
| -- | Parafuso de cabeça oval | M8X40 | 1 | 07147341897 | Shop at ECS Tuning | |||||
| Lado do acompanhante | ||||||||||
| 01 | Mecanismo do banco esquerdo | 1 | 52107335409 | Shop at ECS Tuning | ||||||
| apenas em combinação com | ||||||||||
| 01 | Mecanismo do banco direito | 1 | 52107335410 | Shop at ECS Tuning | ||||||
| apenas em combinação com | ||||||||||
| -- | Parafuso de cabeça oval | M8X40 | 1 | 07147341897 | Shop at ECS Tuning | |||||
| Para viaturas com Banco desportivo |
S481A=Sim |
|||||||||
| 01 | Mecanismo do banco esquerdo | 1 | 52107335409 | Shop at ECS Tuning | ||||||
| apenas em combinação com | ||||||||||
| 01 | Mecanismo do banco direito | 1 | 52107335410 | Shop at ECS Tuning | ||||||
| apenas em combinação com | ||||||||||
| -- | Parafuso de cabeça oval | M8X40 | 1 | 07147341897 | Shop at ECS Tuning | |||||
| Para viaturas com Banco acompanh. regulável altura Lado do condutor |
S450A=Sim |
|||||||||
| 01 | Mecanismo do banco esquerdo | 1 | 52107335409 | Shop at ECS Tuning | ||||||
| apenas em combinação com | ||||||||||
| 01 | Mecanismo do banco direito | 1 | 52107335410 | Shop at ECS Tuning | ||||||
| apenas em combinação com | ||||||||||
| -- | Parafuso de cabeça oval | M8X40 | 1 | 07147341897 | Shop at ECS Tuning | |||||
| Para viaturas com Banco acompanh. regulável altura Lado do acompanhante |
S450A=Sim |
|||||||||
| 01 | Mecanismo do banco esquerdo | 1 | 52107335409 | Shop at ECS Tuning | ||||||
| apenas em combinação com | ||||||||||
| 01 | Mecanismo do banco direito | 1 | 52107335410 | Shop at ECS Tuning | ||||||
| apenas em combinação com | ||||||||||
| -- | Parafuso de cabeça oval | M8X40 | 1 | 07147341897 | Shop at ECS Tuning | |||||
| 02 | Cobertura exterior direita | CARBON BLACK | 1 | 52102757640 | Shop at ECS Tuning | |||||
| 02 | Cobertura exterior esquerda | CARBON BLACK | 1 | 52102757643 | Shop at ECS Tuning | |||||
| Para viaturas com Banco acompanh. regulável altura |
S450A=Não |
|||||||||
| 03 | Tampa exterior | CARBON BLACK | 2 | 52102751370 | $7.31 | Shop at ECS Tuning | ||||
| 03 | Tampa interior | CARBON BLACK | 2 | 52102752631 | $7.31 | Shop at ECS Tuning | ||||
| Para viaturas com Banco acompanh. regulável altura |
S450A=Sim |
|||||||||
| 04 | Alavanca para ajuste da altura do banco | CARBON BLACK | 2 | 52102752672 | $20.76 | Shop at ECS Tuning | ||||
| 05 | Cap for handle | CARBON BLACK | 2 | 52102751367 | $7.80 | Shop at ECS Tuning | ||||
| 06 | Alavanca interior esquerda | CARBON BLACK | 1 | 52102756959 | $17.51 | Shop at ECS Tuning | ||||
| 06 | Alavanca interior direita | CARBON BLACK | 1 | 52102756960 | $17.51 | Shop at ECS Tuning | ||||
| 07 | Amortecimento da estrutura do banco | 2 | 52102752616 | $20.24 | Shop at ECS Tuning | |||||
| 08 | Caixa de ficha | 2 | 52102753580 | $4.29 | Shop at ECS Tuning | |||||
| 09 | Esteira sensora airbag do acompanhante | 1 | 52102755393 | $129.05 | Shop at ECS Tuning | |||||
| 10 | Parafuso de cabeça oval | M8X40 | 8 | 04/2013 | 07149149258 | $3.05 | Shop at ECS Tuning | |||
| 10 | Parafuso de cabeça oval | M8X40 | 8 | 07147341897 | Shop at ECS Tuning | |||||
| 11 | Parafuso Torx | M5X12MM | 4 | 07100702890 | $0.80 | ENDED | Shop at ECS Tuning | |||
Notas
- ENDED = a peça foi descontinuada
